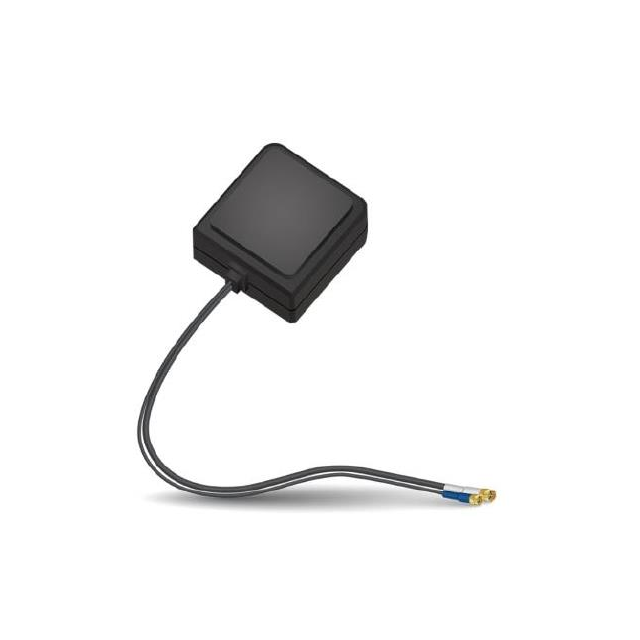

X1005248-GDA2SA10A2
ActiveKyocera AVX
ANTENNA GNSS/DSRC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
X1005248-GDA2SA10A2
ActiveKyocera AVX
ANTENNA GNSS/DSRC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | X1005248-GDA2SA10A2 |
|---|---|
| Antenna Type | Module |
| Applications | DSRC, GNSS |
| Features | LNA, Cable - 1m |
| Frequency (Center/Band) | 1.575 GHz, 5.885 GHz, 1.602 GHz, 1.561 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 5.92 GHz |
| Frequency Range [Min] | 5.85 GHz |
| Gain | 3.5 dBi, 2 dBic, 3 dBi, 3.8 dBi |
| Height (Max) [Max] | 0.787 in |
| Height (Max) [Max] | 20 mm |
| Ingress Protection | IPX5 |
| Mounting Type | Adhesive |
| Number of Bands | 4 |
| RF Family/Standard | Navigation |
| Termination | SMA Male (2) |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 31.87 | |
| 10 | $ 23.23 | |||
| 25 | $ 20.98 | |||
Description
General part information
X1005248 Series
RF ANTENNA DSRC, GNSS Module SMA Male (2) Adhesive
