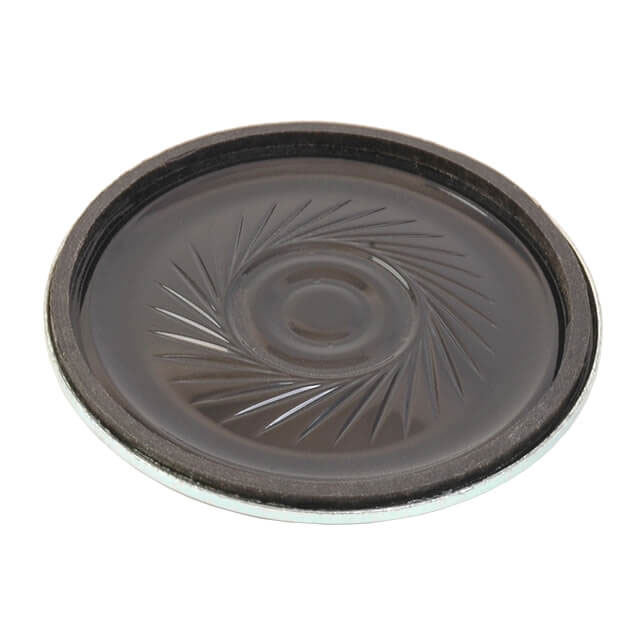

CLS0402MA-1

Active

CUI Devices

SPEAKER 8OHM 500MW TOP PORT 90DB

Search across all available documentation for this part.

Active

CUI Devices

SPEAKER 8OHM 500MW TOP PORT 90DB

Technical Specifications

Parameters and characteristics for this part

Specification	CLS0402MA-1

Efficiency - dBA	90 dBA
Efficiency - Testing	500mW/500mm
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	530 Hz
Frequency Range [Max]	6 kHz
Frequency Range [Min]	530 Hz
Height - Seated (Max) [Max] [z]	5.3 mm
Height - Seated (Max) [Max] [z]	0.209 in
Impedance	8 Ohms
Material - Cone	Polyester, Polyethylene Terephthalate (PET)
Material - Magnet	Nd-Fe-B
Port Location	Top
Power - Max [Max]	1 W
Power - Rated	500 mW
Shape	Round
Size / Dimension [diameter]	1.575 "
Size / Dimension [diameter]	40 mm
Technology	Magnetic
Termination	Solder Pads
Type	Low Profile

Part	Efficiency - Type	Power - Max [Max]	Impedance	Power - Rated	Shape	Material - Magnet	Port Location	Technology	Type	Termination	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Material - Cone	Efficiency - dBA	Size / Dimension [diameter]	Size / Dimension [diameter]	Efficiency - Testing	Frequency Range [Min]	Frequency Range [Max]	Frequency - Self Resonant
CUI Devices CLS0402MA-1	Sound Pressure Level (SPL)	1 W	8 Ohms	500 mW	Round	Nd-Fe-B	Top	Magnetic	Low Profile	Solder Pads	5.3 mm	0.209 in	Polyester Polyethylene Terephthalate (PET)	90 dBA	1.575 "	40 mm	500mW/500mm	530 Hz	6 kHz	530 Hz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1200	$ 2.63

General part information

8 Ohms Low Profile Speaker 500 mW 530 Hz ~ 6 kHz Top Round
