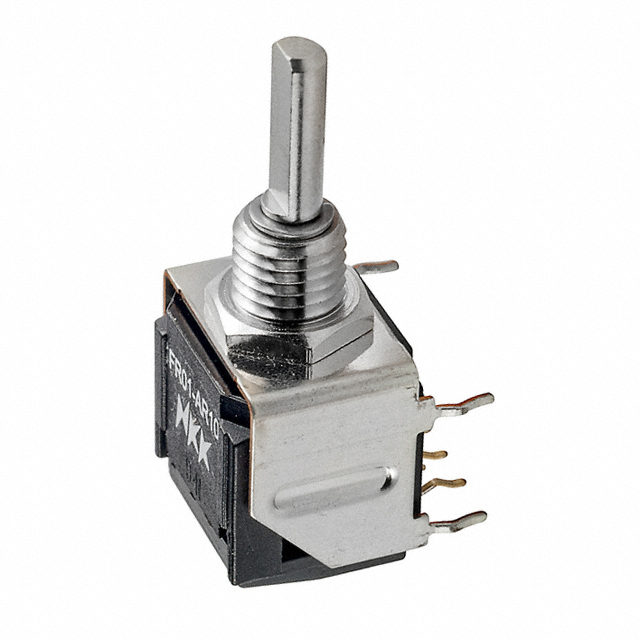

FR01AR10HB-S

Active

NKK Switches

ROTARY SWITCH, 10 POSITION, 1 POLE

Search across all available documentation for this part.

Active

NKK Switches

ROTARY SWITCH, 10 POSITION, 1 POLE

Technical Specifications

Parameters and characteristics for this part

Specification	FR01AR10HB-S

Actuator Level	Raised
Actuator Type	Rotary with Shaft
Body Material	Polyamide (PA), Nylon, Glass Filled
Circuit	BCD
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	100 mA
Electrical Life	10000 Cycles
Height Above Board [z]	11 mm
Height Above Board [z]	0.433 in
Length	13.11 mm
Length [x]	0.516 "
Mechanical Life	10000 Steps
Mounting Type	Right Angle, Panel Mount
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	5 V
Washable	False

Part	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch	Pitch [x]	Voltage Rating	Actuator Level	Number of Positions	Contact Material	Mechanical Life	Actuator Type	Electrical Life	Current Rating (Amps)	Body Material	Length	Length [x]	Termination Style	Contact Finish	Height Above Board	Height Above Board	Height Above Board [z]	Height Above Board [z]	Mounting Type
NKK Switches FR01AR10PB	BCD	-25 °C	85 °C	0.1 in	Full	2.54 mm	5 V	Raised	10	Copper Alloy	10000 Steps	Rotary with Shaft	10000 Cycles	100 mA	Polyamide (PA) Nylon Glass Filled	13.11 mm	0.516 "	PC Pin	Gold	28.05 mm	1.104 in
NKK Switches FR01AR10HB-S	BCD	-25 °C	85 °C	0.1 in	Full	2.54 mm	5 V	Raised	10	Copper Alloy	10000 Steps	Rotary with Shaft	10000 Cycles	100 mA	Polyamide (PA) Nylon Glass Filled	13.11 mm	0.516 "	PC Pin	Gold			11 mm	0.433 in	Panel Mount Right Angle
NKK Switches FR01AR10HB-06XL	BCD	-25 °C	85 °C	0.1 in	Full	2.54 mm	5 V	Raised	10	Copper Alloy	10000 Steps	Rotary with Shaft	10000 Cycles	100 mA	Polyamide (PA) Nylon Glass Filled	13.11 mm	0.516 "	PC Pin	Gold			11 mm	0.433 in	Panel Mount Right Angle
NKK Switches FR01AR10PB-W-S	BCD	-25 °C	85 °C	0.1 in	Full	2.54 mm	5 V	Raised	10	Copper Alloy	10000 Steps	Rotary with Shaft	10000 Cycles	100 mA	Polyamide (PA) Nylon Glass Filled	13.11 mm	0.516 "	PC Pin	Gold	28.05 mm	1.104 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch BCD 10 Position Panel Mount, Right Angle Rotary with Shaft Actuator 100mA 5VDC
