CQT1-0.250

Active

Chip Quik Inc.

TAPE FILM AMBER 1/4"X36YDS

Search across all available documentation for this part.

Active

Chip Quik Inc.

TAPE FILM AMBER 1/4"X36YDS

Technical Specifications

Parameters and characteristics for this part

Part	Shelf Life Start	Shelf Life	Adhesive	Backing, Carrier	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Width [x]	Width [x]	Thickness	Thickness	Thickness	Temperature Range [Min]	Temperature Range [Max]	Color	Tape Type	Length	Length	Length	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Width	Width	Width	Width [y]	Width [y]
Chip Quik Inc. CQT1-1.000	Date of Manufacture	36 Months	Silicone	Polyimide	1 mils	0.025 mm	0.001 in	25.4 mm	1 in	2 mils	0.002 in	0.051 mm	-100 °F -73 °C	260 °C	Amber	Film	36 yd	32.9 m	108 ft	1 mils	0.025 mm	0.001 "
Chip Quik Inc. CQT1-0.250	Date of Manufacture	36 Months	Silicone	Polyimide	1 mils	0.025 mm	0.001 in			2 mils	0.002 in	0.051 mm	-100 °F -73 °C	260 °C	Amber	Film	36 yd	32.9 m	108 ft	1 mils	0.025 mm	0.001 "	0.25 in	0.25 in	6.35 mm
Chip Quik Inc. CQT1-2.000	Date of Manufacture	36 Months	Silicone	Polyimide	1 mils	0.025 mm	0.001 in			2 mils	0.002 in	0.051 mm	-100 °F -73 °C	260 °C	Amber	Film	36 yd	32.9 m	108 ft	1 mils	0.025 mm	0.001 "				2 "	50.8 mm
Chip Quik Inc. CQT1-1.250	Date of Manufacture	36 Months	Silicone	Polyimide	1 mils	0.025 mm	0.001 in			2 mils	0.002 in	0.051 mm	-100 °F -73 °C	260 °C	Amber	Film	36 yd	32.9 m	108 ft	1 mils	0.025 mm	0.001 "		1.25 in	31.75 mm
Chip Quik Inc. CQT1-0.500	Date of Manufacture	36 Months	Silicone	Polyimide	1 mils	0.025 mm	0.001 in			2 mils	0.002 in	0.051 mm	-100 °F -73 °C	260 °C	Amber	Film	36 yd	32.9 m	108 ft	1 mils	0.025 mm	0.001 "	0.5 in	0.5 in	12.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

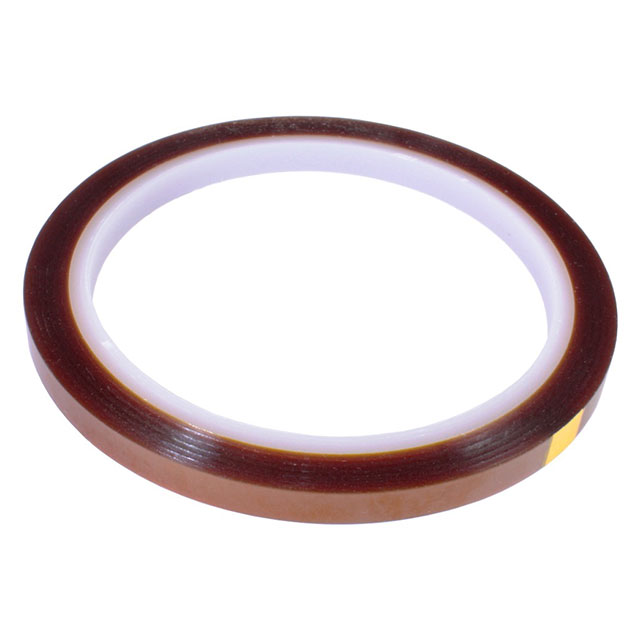

Film Tape Silicone Adhesive Amber 0.25" (6.35mm) 1/4" X 108' (32.9m) 36 yds

Technical documentation and resources
