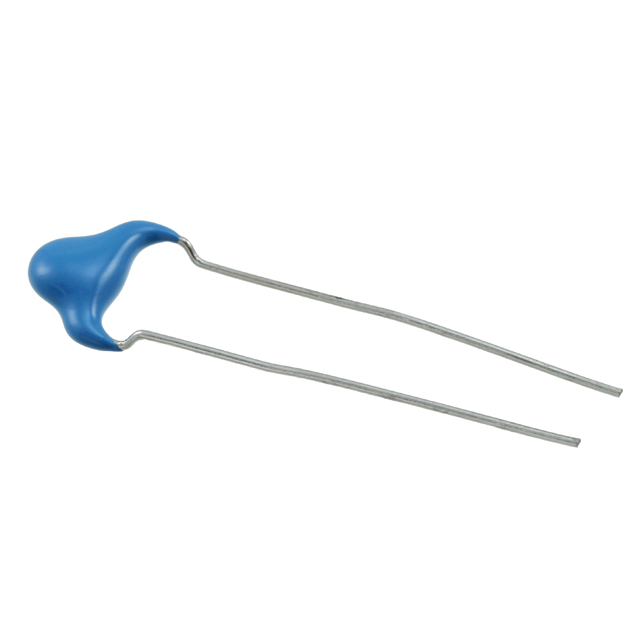

DE2B3KY101KB3BU02F

Obsolete

Murata Power Solutions Inc.

CAP CER 100PF 300VAC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DE2B3KY101KB3BU02F

Obsolete

Murata Power Solutions Inc.

CAP CER 100PF 300VAC RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DE2B3KY101KB3BU02F

Applications	Safety
Capacitance	100 pF
Features	Safety Series X1Y2
Height - Seated (Max) [Max]	0.394 in
Height - Seated (Max) [Max]	10 mm
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Disc, Radial
Ratings [custom]	2
Ratings [custom]	1
Size / Dimension [diameter]	7 mm
Size / Dimension [diameter]	0.276 in
Temperature Coefficient	B
Tolerance	10 %
Voltage - Rated	300 VAC

DE2B3KY Series

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Ratings [custom]	Ratings [custom]	Capacitance	Temperature Coefficient	Lead Spacing	Lead Spacing	Features	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Lead Style	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Voltage - Rated	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Murata Power Solutions Inc. DE2B3KY101KB3BU02F	7 mm	0.276 in	10 %	2	1	100 pF	B	7.5 mm	0.295 in	Safety Series X1Y2	Through Hole	125 °C	-40 °C	Straight	0.394 in	10 mm	Safety	300 VAC	Disc Radial
Murata Power Solutions Inc. DE2B3KY101KA3BM02F	7 mm	0.276 in	10 %	2	1	100 pF	B	7.5 mm	0.295 in	Safety Series X1Y2	Through Hole	125 °C	-40 °C	Straight	0.394 in	10 mm	Safety	250 VAC	Disc Radial
Murata Power Solutions Inc. DE2B3KY151KN3AU02F	7 mm	0.276 in	10 %	2	1	150 pF	B	7.5 mm	0.295 in	Safety Series X1Y2	Through Hole	125 °C	-40 °C	Straight	0.394 in	10 mm	Safety	300 VAC	Disc Radial
Murata Power Solutions Inc. DE2B3KY101KN3AU02F	7 mm	0.276 in	10 %	2	1	100 pF	B	7.5 mm	0.295 in	Safety Series X1Y2	Through Hole	125 °C	-40 °C	Straight	0.394 in	10 mm	Safety	300 VAC	Disc Radial
Murata Power Solutions Inc. DE2B3KY221KA3BM02F	7 mm	0.276 in	10 %	2	1	220 pF	B	7.5 mm	0.295 in	Safety Series X1Y2	Through Hole	125 °C	-40 °C	Straight	0.394 in	10 mm	Safety	250 VAC	Disc Radial
Murata Power Solutions Inc. DE2B3KY331KA3BM02F	7 mm	0.276 in	10 %	2	1	330 pF	B	7.5 mm	0.295 in	Safety Series X1Y2	Through Hole	125 °C	-40 °C	Straight	0.394 in	10 mm	Safety	250 VAC	Disc Radial
Murata Power Solutions Inc. DE2B3KY471KB3BM02F	7 mm	0.276 in	10 %	2	1	470 pF	B	7.5 mm	0.295 in	Safety Series X1Y2	Through Hole	125 °C	-40 °C	Straight	0.394 in	10 mm	Safety	250 VAC	Disc Radial
Murata Power Solutions Inc. DE2B3KY681KA3BM02F	8 mm	0.315 "	10 %	2	1	680 pF	B	7.5 mm	0.295 in	Safety Series X1Y2	Through Hole	125 °C	-40 °C	Straight			Safety	250 VAC	Disc Radial	11 mm	0.433 in
Murata Power Solutions Inc. DE2B3KY101KJ2BM01F	7 mm	0.276 in	10 %	2	1	100 pF	B	5 mm	0.197 in	Safety Series X1Y2	Through Hole	125 °C	-40 °C	Straight	0.394 in	10 mm	Safety	250 VAC	Disc Radial
Murata Power Solutions Inc. DE2B3KY331KA2BM01F	7 mm	0.276 in	10 %	2	1	330 pF	B	5 mm	0.197 in	Safety Series X1Y2	Through Hole	125 °C	-40 °C	Straight	0.394 in	10 mm	Safety	250 VAC	Disc Radial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DE2B3KY Series

100 pF ±10% 300VAC Ceramic Capacitor B Radial, Disc

Documents

Technical documentation and resources
