09320183001

Active

HARTING Technology Group

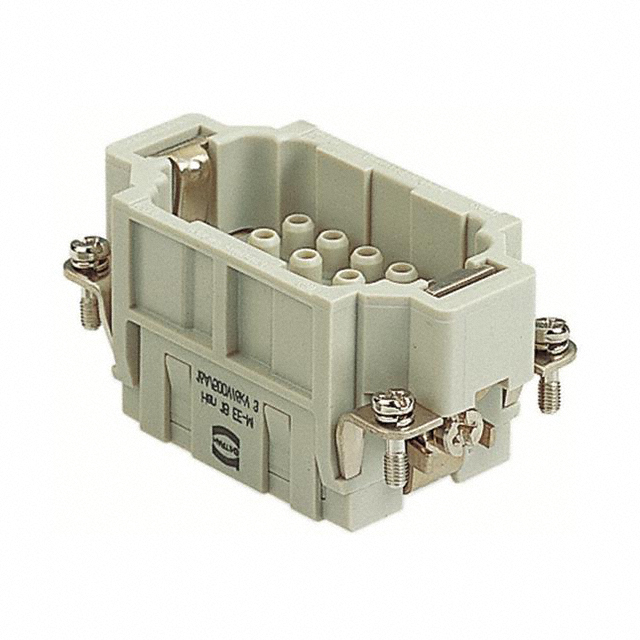

HEAVY DUTY CONNECTOR, UL508, HAN EE SERIES, INSERT, 18+PE CONTACTS, 10B, PLUG, CRIMP PIN

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, UL508, HAN EE SERIES, INSERT, 18+PE CONTACTS, 10B, PLUG, CRIMP PIN

Technical Specifications

Parameters and characteristics for this part

Specification	09320183001

Color	Gray
Connector Type	Insert without Contacts
Contact Type	Han®
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	18+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Termination Style	Crimp
Voltage Rating	600 V

Part	Current Rating (Amps)	Number of Positions	Connector Type	Material Flammability Rating	Color	Operating Temperature [Max]	Operating Temperature [Min]	Size	Contact Type	Termination Style	Gender	Voltage Rating	Housing Material
HARTING Technology Group 09320183001	16 A	18+Ground	Insert without Contacts	UL94 V-0	Gray	125 °C	-40 °C	10B	Han®	Crimp	Male	600 V	Polycarbonate (PC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert without Contacts Gray 18+Ground Position Crimp
