T38111-16-0

Active

Curtis Industries

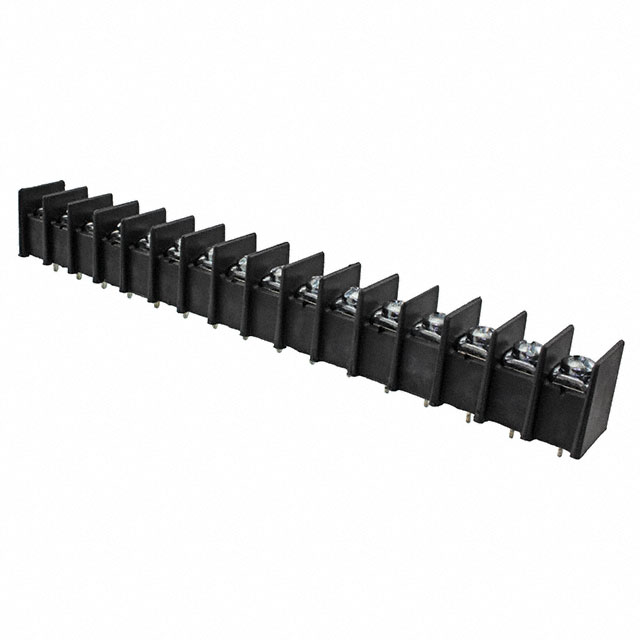

CONN BARRIER STRP 16CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

T38111-16-0

Active

Curtis Industries

CONN BARRIER STRP 16CIRC 0.375"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T38111-16-0

Barrier Type	2 Wall (Dual)
Bottom Termination	PC Pin
Current Rating (Amps)	20 A
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole
Number of Circuits	16
Number of Rows	1
Number of Wire Entries	16
Operating Temperature	105 C
Pitch [x]	9.53 mm
Pitch [x]	0.375 in
Terminal Block Type	Barrier Block
Top Termination	Screws with Captive Plate
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

T38111 Series

Part	Number of Wire Entries	Mounting Type	Number of Circuits	Operating Temperature	Bottom Termination	Pitch [x]	Pitch [x]	Wire Gauge [Min]	Wire Gauge [Max]	Material - Insulation	Number of Rows	Barrier Type	Top Termination	Voltage Rating	Terminal Block Type	Material Flammability Rating	Current Rating (Amps)	Number of Wire Entries [custom]	Number of Circuits [custom]
Curtis Industries T38111-17-0	17	Chassis Panel Through Hole	17	105 C	PC Pin	9.53 mm	0.375 in	12 AWG	22 AWG	Polypropylene (PP)	1	2 Wall (Dual)	Screws with Captive Plate	300 VDC	Barrier Block	UL94 V-0	20 A
Curtis Industries T38111-23-0		Chassis Panel Through Hole	23	105 C	PC Pin	9.53 mm	0.375 in	12 AWG	22 AWG	Polypropylene (PP)	1	2 Wall (Dual)	Screws with Captive Plate	300 VDC	Barrier Block	UL94 V-0	20 A	23
Curtis Industries T38111-08-0	8	Chassis Panel Through Hole		105 C	PC Pin	9.53 mm	0.375 in	12 AWG	22 AWG	Polypropylene (PP)	1	2 Wall (Dual)	Screws with Captive Plate	300 VDC	Barrier Block	UL94 V-0	20 A		8
Curtis Industries T38111-05-0	5	Chassis Panel Through Hole	5	105 C	PC Pin	9.53 mm	0.375 in	12 AWG	22 AWG	Polypropylene (PP)	1	2 Wall (Dual)	Screws with Captive Plate	300 VDC	Barrier Block	UL94 V-0	20 A
Curtis Industries T38111-18-0	18	Chassis Panel Through Hole	18	105 C	PC Pin	9.53 mm	0.375 in	12 AWG	22 AWG	Polypropylene (PP)	1	2 Wall (Dual)	Screws with Captive Plate	300 VDC	Barrier Block	UL94 V-0	20 A
Curtis Industries T38111-10-0	10	Chassis Panel Through Hole	10	105 C	PC Pin	9.53 mm	0.375 in	12 AWG	22 AWG	Polypropylene (PP)	1	2 Wall (Dual)	Screws with Captive Plate	300 VDC	Barrier Block	UL94 V-0	20 A
Curtis Industries T38111-16-0	16	Chassis Panel Through Hole	16	105 C	PC Pin	9.53 mm	0.375 in	12 AWG	22 AWG	Polypropylene (PP)	1	2 Wall (Dual)	Screws with Captive Plate	300 VDC	Barrier Block	UL94 V-0	20 A
Curtis Industries T38111-14-0	14	Chassis Panel Through Hole	14	105 C	PC Pin	9.53 mm	0.375 in	12 AWG	22 AWG	Polypropylene (PP)	1	2 Wall (Dual)	Screws with Captive Plate	300 VDC	Barrier Block	UL94 V-0	20 A
Curtis Industries T38111-25-0	25	Chassis Panel Through Hole	25	105 C	PC Pin	9.53 mm	0.375 in	12 AWG	22 AWG	Polypropylene (PP)	1	2 Wall (Dual)	Screws with Captive Plate	300 VDC	Barrier Block	UL94 V-0	20 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.99
		10	$ 7.76
		25	$ 7.32
		50	$ 7.08
		200	$ 6.76
		400	$ 6.66
		600	$ 6.61
		1000	$ 6.56

Description

General part information

T38111 Series

16 Circuit 0.375" (9.53mm) Barrier Block Connector Screws with Captive Plate
