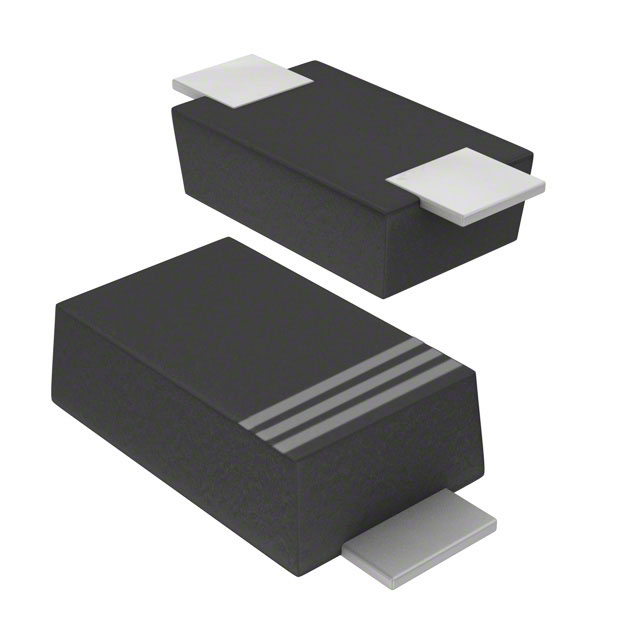

SMF7V5TR
ActiveRohm Semiconductor
TVS DIODE 7.5VWM 12.9VC PMDU
Deep-Dive with AI
Search across all available documentation for this part.
SMF7V5TR
ActiveRohm Semiconductor
TVS DIODE 7.5VWM 12.9VC PMDU
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMF7V5TR |
|---|---|
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Operating Temperature | 150 °C |
| Package / Case | SOD-123F |
| Power - Peak Pulse | 200 W |
| Power Line Protection | False |
| Supplier Device Package | PMDU |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 8.33 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 12.9 V |
| Voltage - Reverse Standoff (Typ) | 7.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.57 | |
| 10 | $ 0.35 | |||
| 100 | $ 0.22 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.15 | |||
| Digi-Reel® | 1 | $ 0.57 | ||
| 10 | $ 0.35 | |||
| 100 | $ 0.22 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.15 | |||
| Tape & Reel (TR) | 3000 | $ 0.09 | ||
Description
General part information
SMF7V5 Series
SMF7V5 is a transient voltage suppressor with small mold package, suitable for surge protection.
Documents
Technical documentation and resources
