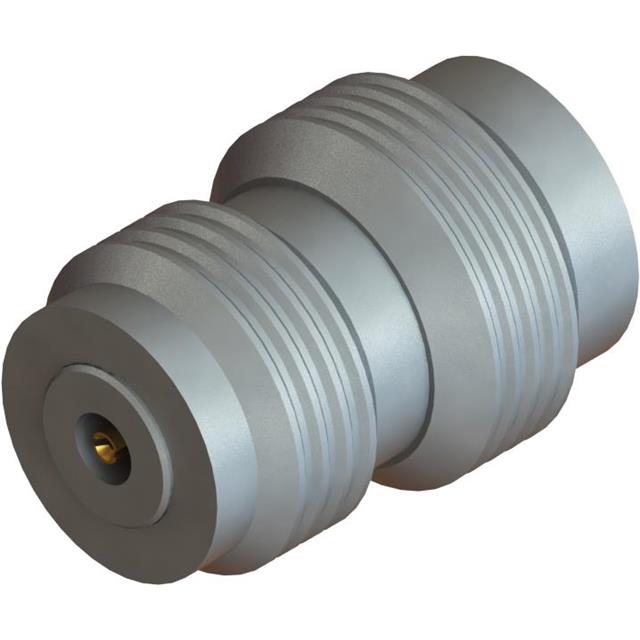

SF3375-6001

Active

Amphenol SV Microwave

CONN 1.85MM JK STR 50OHM COMPRES

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN 1.85MM JK STR 50OHM COMPRES

Technical Specifications

Parameters and characteristics for this part

Specification	SF3375-6001

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	1.85 mm
Connector Type	Female Socket, Jack
Contact Termination	Compression
Features	Field Replaceable, For Hermetically Sealed Pin
Frequency - Max [Max]	67 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Panel Mount, Threaded
Number of Ports	1
Shield Termination	Solder

Part	Connector Type	Features	Housing Color	Mating Cycles	Mounting Type	Number of Ports	Impedance	Center Contact Plating	Contact Termination	Connector Style	Center Contact Material	Body Material	Frequency - Max [Max]	Shield Termination
Amphenol SV Microwave SF3375-6001	Female Socket Jack	Field Replaceable For Hermetically Sealed Pin	Silver	500	Panel Mount Threaded	1	50 Ohms	Gold	Compression	1.85 mm	Beryllium Copper	Stainless Steel	67 GHz	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 60.10

General part information

1.85mm Connector Jack, Female Socket 50 Ohms Panel Mount, Threaded Compression
