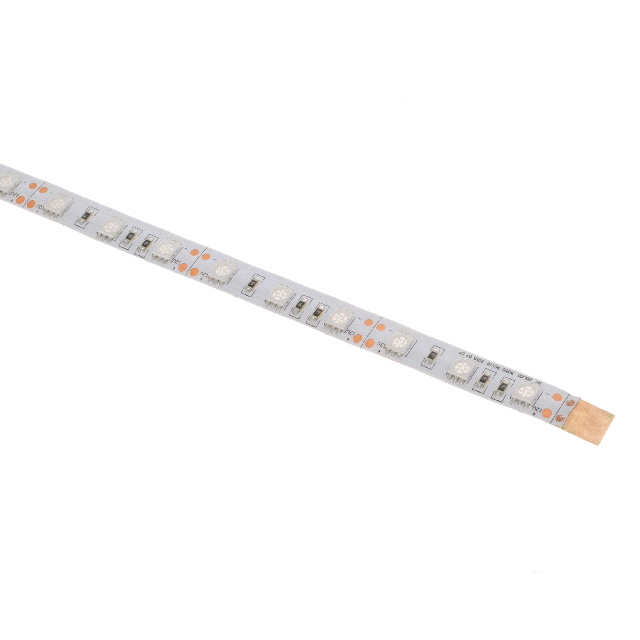

AB-FC012UA-19700-XA2
ActiveAmerican Bright Optoelectronics Corporation
LED MOD AB-FC UVA LNR STRP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AB-FC012UA-19700-XA2
ActiveAmerican Bright Optoelectronics Corporation
LED MOD AB-FC UVA LNR STRP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AB-FC012UA-19700-XA2 |
|---|---|
| Color | UltraViolet |
| Configuration | Linear Light Strip, Flexible |
| Current - Max [Max] | 4.16 A |
| Current - Test | 830 mA |
| Features | IP65 |
| Lens Type | Flat |
| Lumens/Watt @ Current - Test | 1.5 lm/W |
| Luminous Flux @ Current/Temperature | 15 lm |
| Size / Dimension [x] | 5000 mm |
| Size / Dimension [y] | 10 mm |
| Type | LED Module |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 12 V |
| Wavelength | 398 nm |
| Wavelength [Max] | 400 nm |
| Wavelength [Min] | 395 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 53.77 | |
| 10 | $ 44.55 | |||
| 100 | $ 42.99 | |||
Description
General part information
AB-FC012 Series
LED Lighting COBs Engines Modules LED Module AB-FC Ultraviolet Linear Light Strip, Flexible
