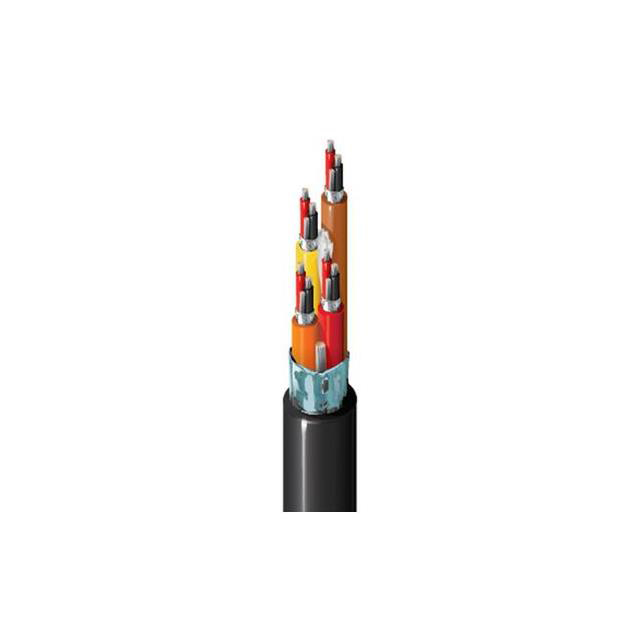

1818WB 0101000

Active

Belden Inc.

12 FS PR #22 PVC FS PO

Search across all available documentation for this part.

Active

Belden Inc.

12 FS PR #22 PVC FS PO

Technical Specifications

Parameters and characteristics for this part

Specification	1818WB 0101000

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	UV Resistant, Water-Blocked, Drain Wire
Jacket (Insulation) Material	High Density Polyethylene (HDPE)
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	24
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Polyester, Aluminum
Shield Type	Foil
Usage	Audio
Voltage	300 V
Wire Gauge	22 AWG

Part	Length	Length	Jacket Color	Usage	Shield Type	Cable Type	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Jacket (Insulation) Material	Conductor Material	Shield Material	Conductor Insulation	Shield Coverage
Belden Inc. 1818WB 0101000	1000 ft	304.8 m	Black	Audio	Foil	Multi-Pair	22 AWG	0.015 in	0.381 mm	Drain Wire UV Resistant Water-Blocked	7	30 AWG	300 V	-20 C	60 °C	24	High Density Polyethylene (HDPE)	Copper Tinned	Aluminum Polyester	Polypropylene (PP)	100 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

24 (12 Pair) Conductor Multi-Pair Cable Black 22 AWG Foil 1000.0' (304.8m)
