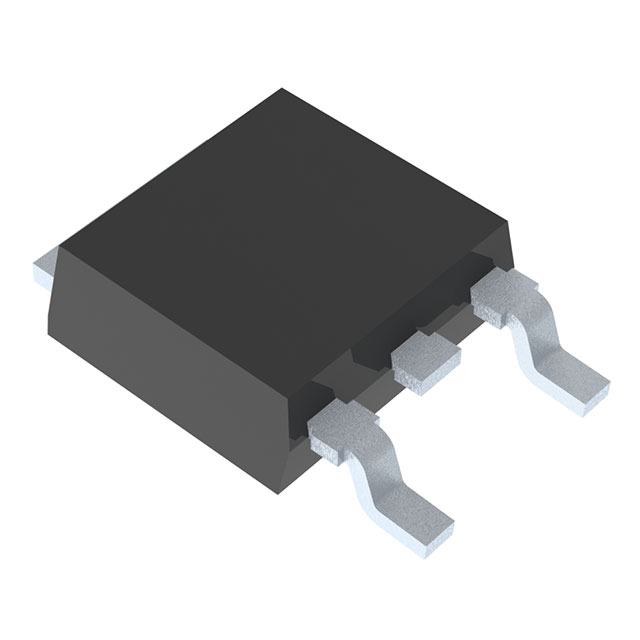

SSRD8620CTT4G

Obsolete

ON Semiconductor

200 V, 6.0 A REVERSE POLARITY POWER RECTIFIER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Package Drawing-369C-DPAK (SINGLE GAUGE) TO-252

SSRD8620CTT4G

Obsolete

ON Semiconductor

200 V, 6.0 A REVERSE POLARITY POWER RECTIFIER

Deep-Dive with AI

DocumentsDatasheet Package Drawing-369C-DPAK (SINGLE GAUGE) TO-252

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSRD8620CTT4G

Current - Average Rectified (Io) (per Diode)	3 A
Current - Reverse Leakage @ Vr	5 µA
Diode Configuration	1 Pair Common Cathode
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Qualification	AEC-Q101
Reverse Recovery Time (trr)	55 ns
Speed	200 mA, 500 ns
Supplier Device Package	DPAK
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	200 V
Voltage - Forward (Vf) (Max) @ If	1.35 V

SSRD8620C Series

200 V, 6.0 A Reverse Polarity Power Rectifier

Part	Qualification	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Supplier Device Package	Grade	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - Forward (Vf) (Max) @ If	Package / Case	Diode Configuration	Speed	Reverse Recovery Time (trr)	Current - Average Rectified (Io) (per Diode)	Technology
ON Semiconductor SSRD8620CTT4G	AEC-Q101	Surface Mount	200 V	5 µA	DPAK	Automotive	175 ░C	-55 C	1.35 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	1 Pair Common Cathode	200 mA 500 ns	55 ns	3 A	Standard
ON Semiconductor SSRD8620CTRG		Surface Mount	200 V	1 µA	DPAK		175 ░C	-65 C	1.15 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	1 Pair Common Anode	200 mA 500 ns	75 ns	3 A	Standard

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SSRD8620C Series

The Reverse Polarity Power Rectifier features epitaxial construction with glass passivation. It is ideally suited for low voltage, high frequency switching power supplies, free wheeling diodes and polarity protection diodes.
