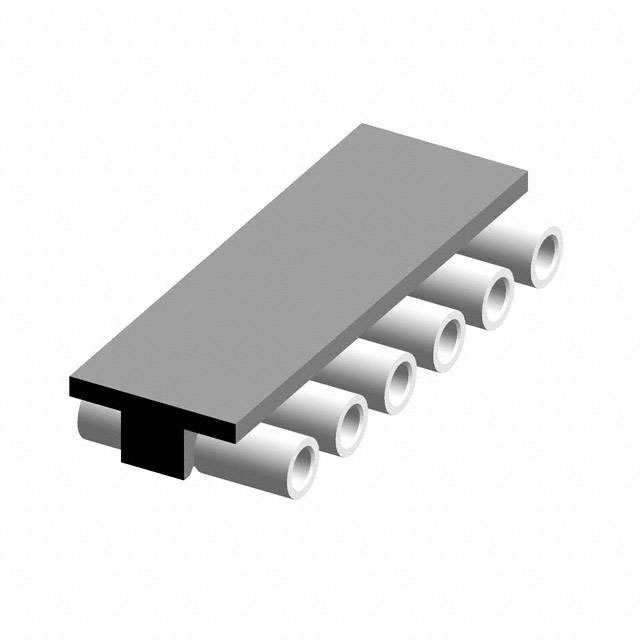

8FM-78-0006-02-146

Active

PRECI-DIP SA

CONN SOCKET 6P 0.1 GOLD SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

8FM-78-0006-02-146

Active

PRECI-DIP SA

CONN SOCKET 6P 0.1 GOLD SMD R/A

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8FM-78-0006-02-146

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.096 "
Insulation Height	2.44 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

8FM-78 Series

Part	Mounting Type	Insulation Height	Insulation Height	Termination	Insulation Material	Connector Type	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Type	Contact Finish - Mating	Contact Material	Contact Shape	Contact Finish Thickness - Mating	Number of Rows	Current Rating (Amps)	Number of Positions	Fastening Type	Material Flammability Rating	Contact Finish - Post	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Features
PRECI-DIP SA 8FM-78-0008-02-146	Surface Mount Right Angle	0.096 "	2.44 mm	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Socket	0.1 in	2.54 mm	Black	Female Socket	Gold	Beryllium Copper	Circular	Flash	1	3 A	8	Push-Pull	UL94 V-0	Tin	All	-55 °C	125 °C
PRECI-DIP SA 8FM-78-0004-02-278191	Surface Mount Right Angle	0.096 "	2.44 mm	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Socket	0.1 in	2.54 mm	Black	Female Socket	Gold	Beryllium Copper	Circular	Flash	1	3 A	4	Push-Pull	UL94 V-0	Tin	All	-55 °C	125 °C	Pick and Place
PRECI-DIP SA 8FM-78-0003-02-278191	Surface Mount Right Angle	0.096 "	2.44 mm	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Socket	0.1 in	2.54 mm	Black	Female Socket	Gold	Beryllium Copper	Circular	Flash	1	3 A		Push-Pull	UL94 V-0	Tin	All	-55 °C	125 °C	Pick and Place
PRECI-DIP SA 8FM-78-0010-02-146191	Surface Mount Right Angle	0.096 "	2.44 mm	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Socket	0.1 in	2.54 mm	Black	Female Socket	Gold	Beryllium Copper	Circular	Flash	1	3 A	10	Push-Pull	UL94 V-0	Tin	All	-55 °C	125 °C	Pick and Place
PRECI-DIP SA 8FM-78-0009-02-146191	Surface Mount Right Angle	0.096 "	2.44 mm	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Socket	0.1 in	2.54 mm	Black	Female Socket	Gold	Beryllium Copper	Circular	Flash	1	3 A	9	Push-Pull	UL94 V-0	Tin	All	-55 °C	125 °C	Pick and Place
PRECI-DIP SA 8FM-78-0002-02-278191	Surface Mount Right Angle	0.096 "	2.44 mm	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Socket	0.1 in	2.54 mm	Black	Female Socket	Gold	Beryllium Copper	Circular	Flash	1	3 A	2	Push-Pull	UL94 V-0	Tin	All	-55 °C	125 °C	Pick and Place
PRECI-DIP SA 8FM-78-0005-02-146	Surface Mount Right Angle	0.096 "	2.44 mm	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Socket	0.1 in	2.54 mm	Black	Female Socket	Gold	Beryllium Copper	Circular	Flash	1	3 A		Push-Pull	UL94 V-0	Tin	All	-55 °C	125 °C
PRECI-DIP SA 8FM-78-0002-02-146191	Surface Mount Right Angle	0.096 "	2.44 mm	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Socket	0.1 in	2.54 mm	Black	Female Socket	Gold	Beryllium Copper	Circular	Flash	1	3 A	2	Push-Pull	UL94 V-0	Tin	All	-55 °C	125 °C	Pick and Place
PRECI-DIP SA 8FM-78-0006-02-146	Surface Mount Right Angle	0.096 "	2.44 mm	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Socket	0.1 in	2.54 mm	Black	Female Socket	Gold	Beryllium Copper	Circular	Flash	1	3 A	6	Push-Pull	UL94 V-0	Tin	All	-55 °C	125 °C
PRECI-DIP SA 8FM-78-0003-02-146191	Surface Mount Right Angle	0.096 "	2.44 mm	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Socket	0.1 in	2.54 mm	Black	Female Socket	Gold	Beryllium Copper	Circular	Flash	1	3 A		Push-Pull	UL94 V-0	Tin	All	-55 °C	125 °C	Pick and Place

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	740	$ 0.97

Description

General part information

8FM-78 Series

6 Position Socket Connector 0.100" (2.54mm) Surface Mount, Right Angle Gold

Documents

Technical documentation and resources

No documents available
