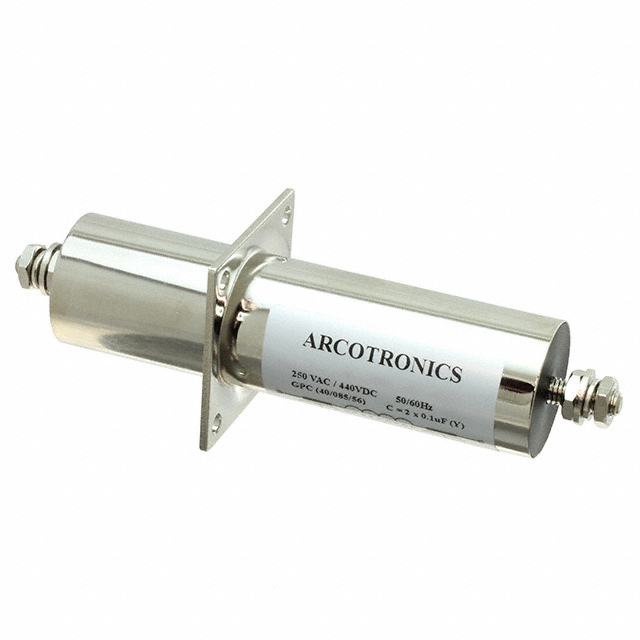

FLLDH016A025I0
ActiveKEMET
FEED THROUGH FILTER, 1 PHASE, 16A, 440V
Deep-Dive with AI
Search across all available documentation for this part.
FLLDH016A025I0
ActiveKEMET
FEED THROUGH FILTER, 1 PHASE, 16A, 440V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FLLDH016A025I0 |
|---|---|
| Applications | General Purpose |
| Configuration | Single Stage |
| Current | 16 A |
| Filter Type | Single Phase |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Termination Style | Threaded Post (M6) |
| Voltage - Rated AC | 250 V |
| Voltage - Rated DC | 440 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Each | 1 | $ 82.31 | |
| 5 | $ 81.85 | |||
| 10 | $ 81.40 | |||
| 25 | $ 80.94 | |||
| 50 | $ 80.40 | |||
| 100 | $ 79.86 | |||
Description
General part information
FLLDH0 Series
Single Phase EMC/EMI Line Filter 16 A 250V 440V 50/60Hz Single Stage Threaded Post (M6)
Documents
Technical documentation and resources
