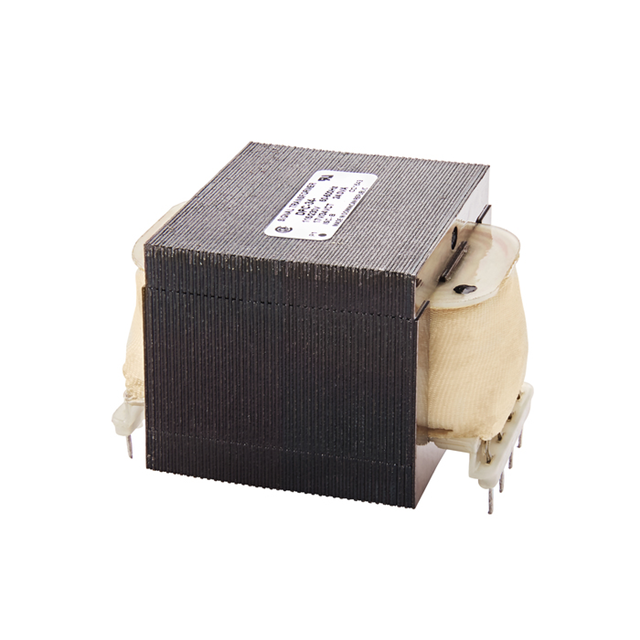

DPC-10-2400

Active

Signal Transformer

POWER TRANSFORMERS 50\60 HZ, LAMINATED TRANSFORMER

Search across all available documentation for this part.

Active

Signal Transformer

POWER TRANSFORMERS 50\60 HZ, LAMINATED TRANSFORMER

Technical Specifications

Parameters and characteristics for this part

Specification	DPC-10-2400

Center Tap	False
Current - Output (Max) [custom]	4.8 A
Current - Output (Max) [custom]	2.4 A
Height - Seated (Max) [Max] [z]	34.93 mm
Mounting Type	Through Hole
Power - Max [Max]	24 VA
Primary Winding(s)	Dual
Secondary Winding(s)	Dual
Size / Dimension [x]	41.3 mm
Size / Dimension [y]	57.2 mm
Termination Style	PC Pin
Type	Laminated Core
Voltage - Isolation	1500 VAC
Voltage - Primary	115 V, 230 V
Voltage - Secondary (Full Load) [custom]	5 V
Voltage - Secondary (Full Load) [custom]	10 V
Weight	340.19 g
Weight	0.75 lb

Pluggable Terminal Blocks 8 Pos 7.62mm pitch Plug 20-14 AWG Screw

Part	Height - Seated (Max) [Max] [z]	Power - Max [Max]	Voltage - Secondary (Full Load) [custom]	Voltage - Secondary (Full Load) [custom]	Center Tap	Primary Winding(s)	Current - Output (Max) [custom]	Current - Output (Max) [custom]	Secondary Winding(s)	Voltage - Isolation	Weight	Weight	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Termination Style	Voltage - Primary	Type
Signal Transformer DPC-10-2400	34.93 mm	24 VA	5 V	10 V		Dual	4.8 A	2.4 A	Dual	1500 VAC	340.19 g	0.75 lb	Through Hole	41.3 mm	57.2 mm	PC Pin	115 V 230 V	Laminated Core
