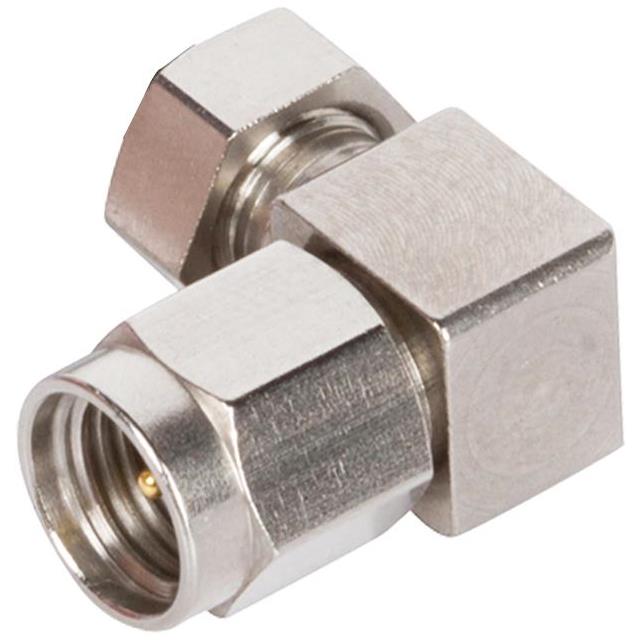

SF1512-60028

Active

Amphenol SV Microwave

2.92MM MALE CONNECTOR, R/A FOR .

Search across all available documentation for this part.

Active

Amphenol SV Microwave

2.92MM MALE CONNECTOR, R/A FOR .

Technical Specifications

Parameters and characteristics for this part

Specification	SF1512-60028

Body Material	Stainless Steel
Cable Group	Flexible
Cable Group	0.047 in
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	2.92 mm
Connector Type	Male Pin, Plug
Contact Termination	Solder
Frequency - Max [Max]	40 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp

Part	Housing Color	Center Contact Material	Connector Style	Connector Type	Frequency - Max [Max]	Contact Termination	Cable Group	Cable Group	Shield Termination	Body Material	Center Contact Plating	Mounting Type	Impedance	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles
Amphenol SV Microwave SF1512-60027	Silver	Beryllium Copper	2.92 mm	Male Pin Plug	40 GHz	Solder	0.085 in	RG-405	Clamp	Stainless Steel	Gold	Free Hanging (In-Line) Right Angle	50 Ohms	1	-65 ░C	165 °C	500
Amphenol SV Microwave SF1512-60028	Silver	Beryllium Copper	2.92 mm	Male Pin Plug	40 GHz	Solder	0.047 in	Flexible	Clamp	Stainless Steel	Gold	Free Hanging (In-Line) Right Angle	50 Ohms	1	-65 ░C	165 °C	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 128.62

General part information

2.92mm Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
