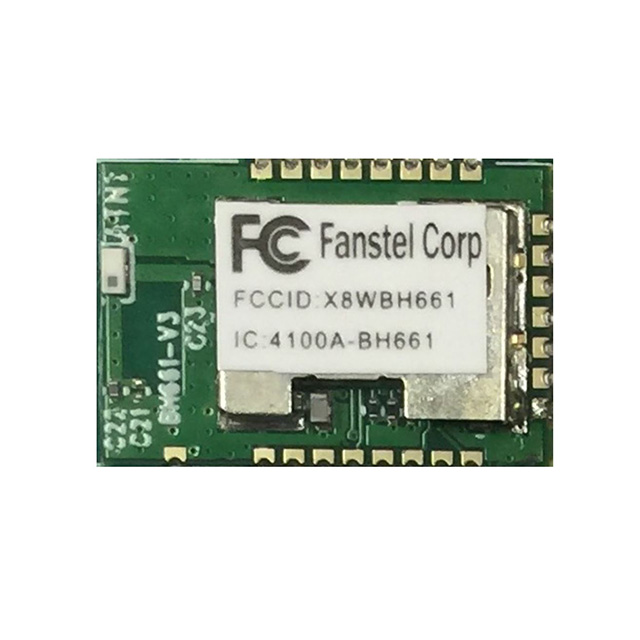

BH661C-503
ActiveFanstel Corp.
RF TXRX MOD BLUETOOTH CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
BH661C-503
ActiveFanstel Corp.
RF TXRX MOD BLUETOOTH CHIP SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BH661C-503 |
|---|---|
| Antenna Type | Integrated, Chip |
| Data Rate | 4.33 Mbps |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-SMD Module |
| Power - Output | 2 dBm |
| Protocol | Bluetooth v4.2 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -91 dBm |
| Serial Interfaces | GPIO, SPI, I2C, UART |
| Utilized IC / Part | TC35661 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BH661C Series
Bluetooth Bluetooth v4.2 Transceiver Module Integrated, Chip Surface Mount
Documents
Technical documentation and resources
