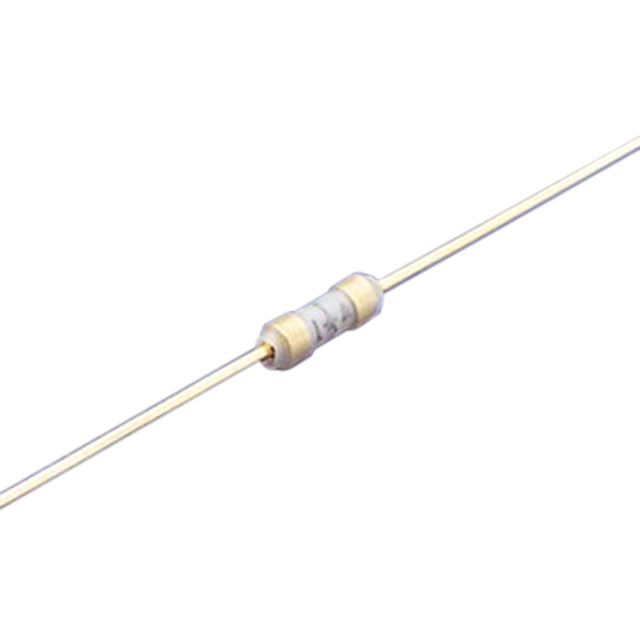

0275020.MXL

Active

Littelfuse/Commercial Vehicle Products

FUSE, PCB LEADED, 20 A, 32 V, PICO 275 SERIES, 32 V, VERY FAST ACTING, AXIAL LEADED

Search across all available documentation for this part.

Active

Littelfuse/Commercial Vehicle Products

FUSE, PCB LEADED, 20 A, 32 V, PICO 275 SERIES, 32 V, VERY FAST ACTING, AXIAL LEADED

Technical Specifications

Parameters and characteristics for this part

Specification	0275020.MXL

Approval Agency	UL
Breaking Capacity @ Rated Voltage	100 A AC, 300 A DC
Current Rating (Amps)	20 A
DC Cold Resistance	0.0031 Ohms
Fuse Type	Board Mount
Melting I²t	115
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Response Time	Fast Blow
Size / Dimension [diameter]	0.133 "
Size / Dimension [diameter]	3.38 mm
Size / Dimension [x]	7.87 mm
Size / Dimension [x]	0.31 "
Voltage Rating - AC	32 V
Voltage Rating - DC	32 V

FUSE 32V PICO I FA RoHS 20A

Part	DC Cold Resistance	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Fuse Type	Response Time	Voltage Rating - AC	Melting I²t	Approval Agency	Voltage Rating - DC	Current Rating (Amps)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Breaking Capacity @ Rated Voltage	Package / Case	Melting I˛t
Littelfuse/Commercial Vehicle Products 0275020.MXL	0.0031 Ohms	7.87 mm	0.133 "	0.31 "	3.38 mm	Board Mount	Fast Blow	32 V	115	UL	32 V	20 A	Through Hole	-55 °C	125 °C	100 A AC 300 A DC	Axial
Littelfuse/Commercial Vehicle Products 0275020.MRT1L	0.0031 Ohms	7.87 mm	0.133 "	0.31 "	3.38 mm	Board Mount	Fast Blow	32 V		UL	32 V	20 A	Through Hole	-55 °C	125 °C	100 A AC 300 A DC	Axial	115

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

The PICO® Very Fast-Acting Fuse is designed to meet an extensive array of performance characteristics in a space-saving subminiature package.
