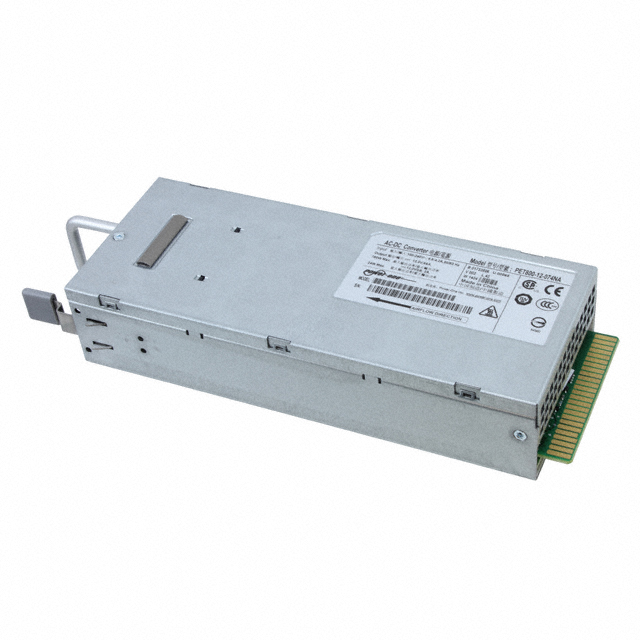

PET800-12-074NA

Active

EOS Power India Private Ltd

AC/DC CONVERTER 12V 800W

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

AC/DC CONVERTER 12V 800W

Technical Specifications

Parameters and characteristics for this part

Specification	PET800-12-074NA

Applications	ITE (Commercial)
Approval Agency	CE, CB
Current - Output 1	65 A
Efficiency	91 %
Features	Hot Swappable, Standby Output, I2C Interface, PFC, Load Sharing, PMBus™, Universal Input
Mounting Type	Rack Mount
Number of Outputs	1
Power (Watts)	800 W
Size / Dimension [x]	7.28 in
Size / Dimension [x]	185 mm
Size / Dimension [y]	2.89 in
Size / Dimension [y]	73.5 mm
Size / Dimension [z]	39 mm
Size / Dimension [z]	1.54 "
Type	Front End
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output 1	12 V

Part	Type	Applications	Current - Output 1	Approval Agency	Voltage - Output 1	Efficiency	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input [Min]	Voltage - Input [Max]	Features	Power (Watts)	Number of Outputs
EOS Power India Private Ltd PET800-12-074NA	Front End	ITE (Commercial)	65 A	CB CE	12 V	91 %	Rack Mount	7.28 in	2.89 in	73.5 mm	39 mm	185 mm	1.54 "	90 VAC	264 VAC	Hot Swappable I2C Interface Load Sharing PFC PMBus™ Standby Output Universal Input	800 W	1
EOS Power India Private Ltd PET800-12-074RA	Front End	ITE (Commercial)	65 A	CE	12 V	93 %	Rack Mount	7.28 in	2.89 in	73.5 mm	39 mm	185 mm	1.54 "	90 VAC	264 VAC	Hot Swappable I2C Interface Load Sharing PFC PMBus™ Standby Output Universal Input	800 W	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Front End AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
