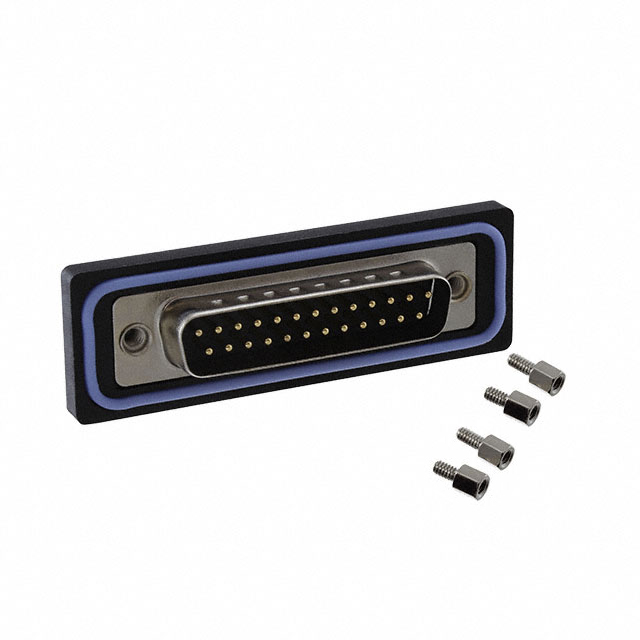

SDB-25PMMP-SL8001

Active

Amphenol LTW

D SUB CONNECTOR, DB25, STANDARD, PLUG, 25 CONTACTS, DB, SOLDER

Search across all available documentation for this part.

Active

Amphenol LTW

D SUB CONNECTOR, DB25, STANDARD, PLUG, 25 CONTACTS, DB, SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	SDB-25PMMP-SL8001

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Shielded
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Through Hole, Panel Mount
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder

Part	Flange Feature	Contact Type	Mounting Type	Shell Material, Finish	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Current Rating (Amps)	Connector Style	Contact Finish	Connector Type	Color	Number of Rows	Ingress Protection	Dielectric Material	Termination	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Features
Amphenol LTW SDB-25PMMP-SL8001	Female Screwlock (4-40) Mating Side	Signal	Panel Mount Through Hole	Nickel Plated Steel	-40 °C	105 ░C	Copper Alloy	5 A	D-Sub	Gold	Male Pins Plug	Black	2	IP68 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)	Solder	B DB	3	Grounding Indents Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position D-Sub Plug, Male Pins Connector
