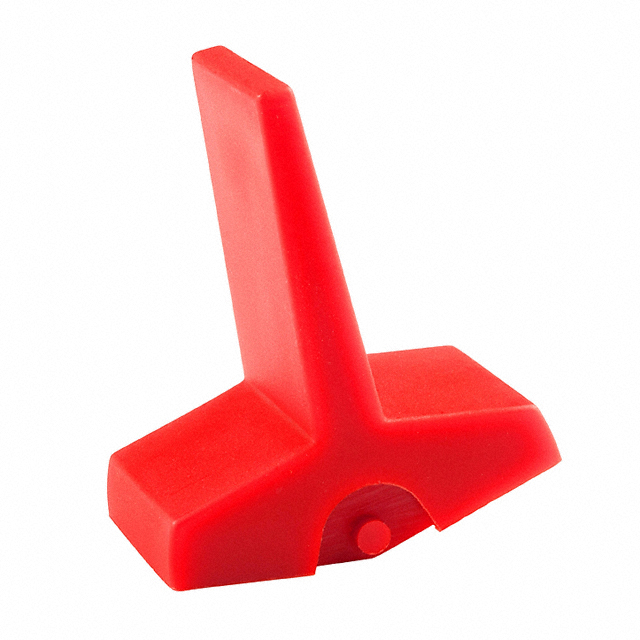

AT4157C

Active

NKK Switches

SWITCH CAP, NKK M & P SERIES MINIATURE & STANDARD ROCKER SWITCHES, RED

Search across all available documentation for this part.

Active

NKK Switches

SWITCH CAP, NKK M & P SERIES MINIATURE & STANDARD ROCKER SWITCHES, RED

Technical Specifications

Parameters and characteristics for this part

Specification	AT4157C

Color	Red
For Use With/Related Products	M and P Series
Illumination	Non-Illuminated
Mounting Type	Snap Fit
Shape	Paddle
Size [x]	26.8 mm
Size [y]	15.11 mm
Size [z]	29.82 mm
Switch Type	Rocker

Part	Color	Shape	Size [y]	Size [x]	Size [z]	Switch Type	For Use With/Related Products	Mounting Type	Illumination
NKK Switches AT4157A	Black	Paddle	15.11 mm	26.8 mm	29.82 mm	Rocker	M and P Series	Snap Fit	Non-Illuminated
NKK Switches AT4157B	White	Paddle	15.11 mm	26.8 mm	29.82 mm	Rocker	M and P Series	Snap Fit	Non-Illuminated
NKK Switches AT4157C	Red	Paddle	15.11 mm	26.8 mm	29.82 mm	Rocker	M and P Series	Snap Fit	Non-Illuminated
NKK Switches AT4157G	Blue	Paddle	15.11 mm	26.8 mm	29.82 mm	Rocker	M and P Series	Snap Fit	Non-Illuminated
NKK Switches AT4157E	Yellow	Paddle	15.11 mm	26.8 mm	29.82 mm	Rocker	M and P Series	Snap Fit	Non-Illuminated
NKK Switches AT4157H	Gray	Paddle	15.11 mm	26.8 mm	29.82 mm	Rocker	M and P Series	Snap Fit	Non-Illuminated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Paddle Rocker Switch Cap Red Snap Fit
