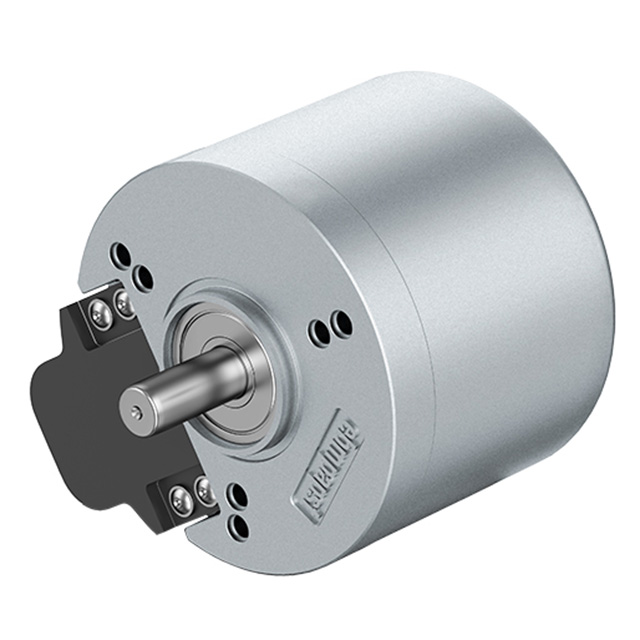

VM.VDC4915BK4
Activeebm-papst Inc.
STANDARD MOTOR 4000 RPM 24V
Deep-Dive with AI
Search across all available documentation for this part.
VM.VDC4915BK4
Activeebm-papst Inc.
STANDARD MOTOR 4000 RPM 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VM.VDC4915BK4 |
|---|---|
| Diameter - Shaft [diameter] | 0.315 in |
| Diameter - Shaft [diameter] | 8 mm |
| Features | Integrated Controller |
| Function | Standard |
| Length - Shaft and Bearing [x] | 20 mm |
| Length - Shaft and Bearing [x] | 0.787 in |
| Motor Type | Brushless (BLDC) |
| Mounting Hole Spacing | 50 mm |
| Mounting Hole Spacing | 1.969 " |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| RPM | 4000 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 1.929 in |
| Size / Dimension [diameter] | 49 mm |
| Termination Style | Wire Leads |
| Torque - Rated (oz-in / mNm) | 235 mNm |
| Torque - Rated (oz-in / mNm) | 33.28 oz-in |
| Type | DC Motor |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 588.68 | |
Description
General part information
VM.VDC Series
Brushless (BLDC) DC Motor Standard 4000 RPM 24VDC
Documents
Technical documentation and resources
