845-015-542-408
ActiveEDAC Inc.

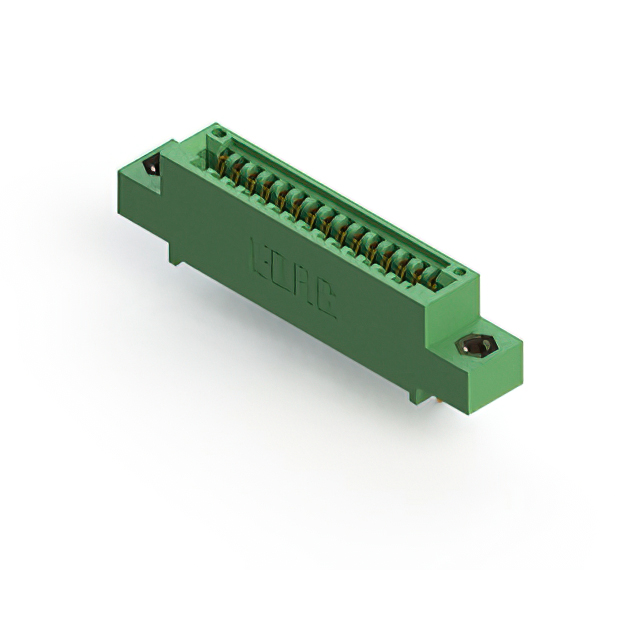

CONN EDGE SINGLE FML 15POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-015-542-408
ActiveEDAC Inc.
CONN EDGE SINGLE FML 15POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-015-542-408 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 15 |
| Number of Positions/Bay/Row [custom] | 15 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
845-015 Series
...
| Part | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Color | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Number of Positions | Card Type | Number of Rows | Contact Type | Gender | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Termination Rows | Mounting Type | Number of Positions/Bay/Row [custom] | Material - Insulation | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | 125 °C | -40 °C | Copper Alloy | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | Green | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 15 | Non Specified - Single Edge | 1 | Cantilever | Female | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | Through Hole | 15 | Diallyl Phthalate (DAP) | ||
EDAC Inc. | Gold | 125 °C | -40 °C | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Green | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 15 | Non Specified - Single Edge | 1 | Cantilever | Female | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | Through Hole | 15 | Diallyl Phthalate (DAP) | ||||
EDAC Inc. | Gold | 125 °C | -40 °C | Copper Alloy | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | Green | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 15 | Non Specified - Single Edge | 1 | Cantilever | Female | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | Through Hole | 15 | Diallyl Phthalate (DAP) | ||
EDAC Inc. | Gold | 125 °C | -40 °C | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Green | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 15 | Non Specified - Single Edge | 1 | Cantilever | Female | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | Through Hole | 15 | Diallyl Phthalate (DAP) | ||||
EDAC Inc. | Gold | 125 °C | -40 °C | Copper Alloy | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | Green | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 15 | Non Specified - Single Edge | 1 | Cantilever | Female | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | Through Hole Right Angle | 15 | Diallyl Phthalate (DAP) | ||
EDAC Inc. | Gold | 125 °C | -40 °C | Copper Alloy | Side Mount Opening Unthreaded | Green | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 15 | Non Specified - Single Edge | 1 | Cantilever | Female | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | Through Hole | 15 | Diallyl Phthalate (DAP) | 3.25 mm | 0.128 in | ||
EDAC Inc. | Gold | 125 °C | -40 °C | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | Green | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 15 | Non Specified - Single Edge | 1 | Cantilever | Female | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | Through Hole | 15 | Diallyl Phthalate (DAP) | ||||
EDAC Inc. | Gold | 125 °C | -40 °C | Copper Alloy | Green | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 15 | Non Specified - Single Edge | 1 | Cantilever | Female | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | Through Hole | 15 | Diallyl Phthalate (DAP) | 3.25 mm | 0.128 in | |||
EDAC Inc. | Gold | 125 °C | -40 °C | Copper Alloy | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Green | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 15 | Non Specified - Single Edge | 1 | Cantilever | Female | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | Through Hole | 15 | Diallyl Phthalate (DAP) | ||
EDAC Inc. | Gold | 125 °C | -40 °C | Copper Alloy | Green | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 15 | Non Specified - Single Edge | 1 | Cantilever | Female | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | Through Hole | 15 | Diallyl Phthalate (DAP) | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 59.77 | |
Description
General part information
845-015 Series
15 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
