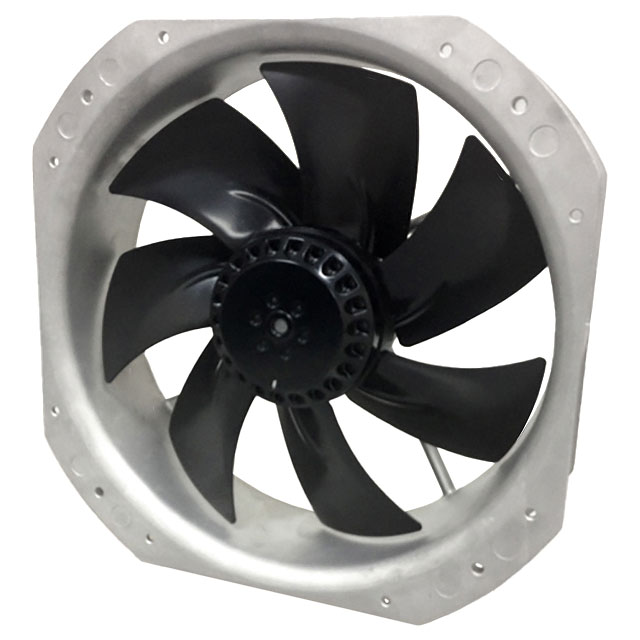

OA280AN-11-1TB18
ActiveOrion Fans
AC FAN BALL BEARING 115V 148W 50HZ/60HZ 2700RPM 1130CFM 70DB FLANGE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
OA280AN-11-1TB18
ActiveOrion Fans
AC FAN BALL BEARING 115V 148W 50HZ/60HZ 2700RPM 1130CFM 70DB FLANGE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OA280AN-11-1TB18 |
|---|---|
| Air Flow | 1130 CFM |
| Air Flow | 31.64 m³/min |
| Approval Agency | cURus, TUV |
| Bearing Type | Ball |
| Current Rating (Amps) | 1.5 A |
| Fan Type | Tubeaxial |
| Features | Capacitor, Thermal Overload Protector (TOP) |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Lifetime @ Temp. | 40000 Hrs |
| Material - Blade | Metal |
| Material - Frame | Aluminum |
| Operating Temperature [Max] | 80 °C |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 148 W |
| RPM | 2700 RPM |
| Size / Dimension [x] | 280 mm |
| Size / Dimension [y] | 280 mm |
| Static Pressure | 194.3 Pa |
| Static Pressure | 0.78 in H2O |
| Termination | Terminal Block |
| Voltage - Rated | 115 VAC |
| Voltage Range [Max] | 125 VAC |
| Voltage Range [Min] | 100 VAC |
| Weight | 6.2 lbs |
| Weight | 2.8 kg |
| Width [y] | 80 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 206.20 | |
| 12 | $ 182.16 | |||
| 30 | $ 174.01 | |||
| 54 | $ 168.97 | |||
Description
General part information
OA280AN Series
Fan Tubeaxial 115VAC Square - 280mm L x 280mm H Ball 1130.0 CFM (31.64m³/min) Terminal Block
