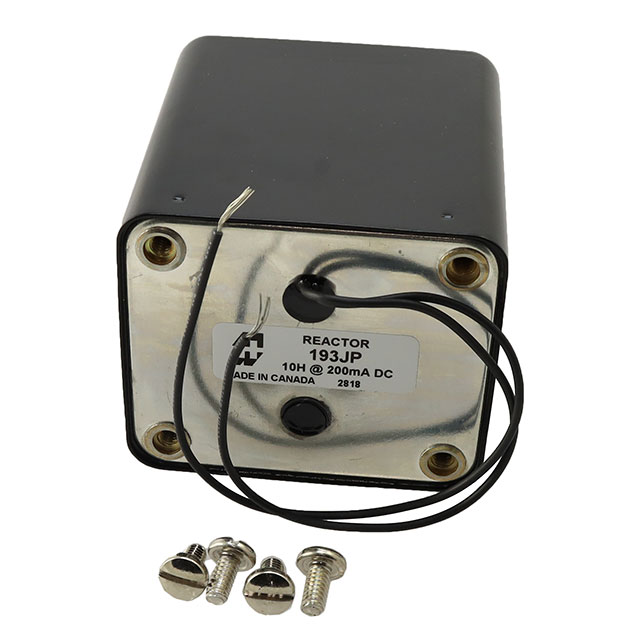

193JP
ActiveHammond Manufacturing
FIXED IND 10H 200MA 79 OHM CHASS
Deep-Dive with AI
Search across all available documentation for this part.
193JP
ActiveHammond Manufacturing
FIXED IND 10H 200MA 79 OHM CHASS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 193JP |
|---|---|
| Current Rating (Amps) | 0.2 A |
| Height - Seated (Max) [Max] [z] | 107.95 mm |
| Height - Seated (Max) [Max] [z] | 4.25 in |
| Inductance | 10 H |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard, 2 Lead |
| Shielding | Unshielded |
| Size / Dimension [x] | 3.88 " |
| Size / Dimension [x] | 98.55 mm |
| Size / Dimension [y] | 84.07 mm |
| Size / Dimension [y] | 3.31 " |
| Tolerance | 15 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 211.16 | |
Description
General part information
193J Series
10 H Unshielded Wirewound Inductor 200 mA 79Ohm Nonstandard, 2 Lead
