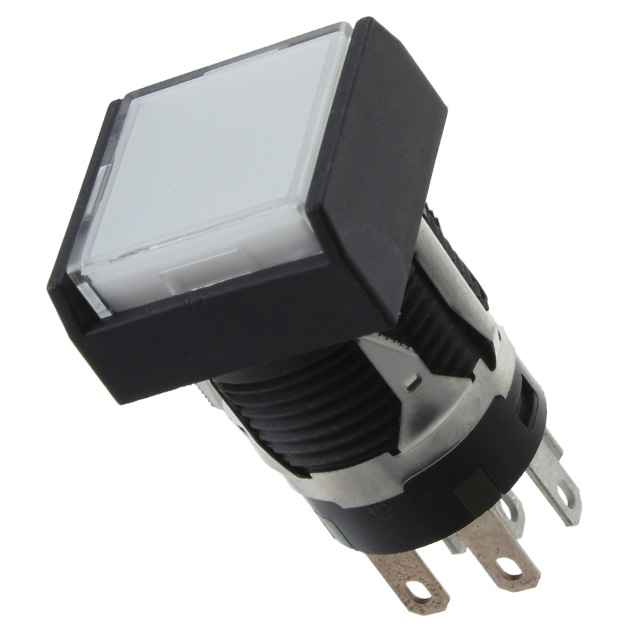

YB26KKW01-2CF12-JB

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB26KKW01-2CF12-JB

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB26KKW01-2CF12-JB

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	DPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Features	Voltage Reduction Lighting
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	12 VDC
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB26KK Series

Part	Voltage Rating - DC	Features	Switch Function	Termination Style	Termination Style	Termination Style	Mounting Type	Actuator Marking	Illumination Type, Color	Color - Actuator/Cap	Illumination Voltage (Nominal)	Panel Cutout Dimensions [diameter]	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Type	Electrical Life	Voltage Rating - AC	Current Rating (Amps)	Mechanical Life	Actuator Type
NKK Switches YB26KKW01-2CF12-JB	30 V	Voltage Reduction Lighting	On-On	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Snap-In	No Marking	Green/Red LED	Clear	12 VDC	16 mm	DPDT	50 °C	-25 °C	Illuminated Standard	100000 Cycles	125 V	3 A	200000 Cycles	Button Square
NKK Switches YB26KKG01-2CF05-JB	28 V	Voltage Reduction Lighting	On-On	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Snap-In	No Marking	Green/Red LED	Clear	5 VDC	16 mm	DPDT	50 °C	-25 °C	Illuminated Standard	100000 Cycles	28 V	0.4 VA	200000 Cycles	Button Square
NKK Switches YB26KKW01	30 V	Voltage Reduction Lighting	On-On	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Snap-In	No Marking				16 mm	DPDT	70 °C	-25 °C	Standard	100000 Cycles	125 V	3 A	200000 Cycles	Plunger for Cap
NKK Switches YB26KKG01-2CF24-JB	28 V	Voltage Reduction Lighting	On-On	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Snap-In	No Marking	Green/Red LED	Clear	24 V	16 mm	DPDT	50 °C	-25 °C	Illuminated Standard	100000 Cycles	28 V	0.4 VA	200000 Cycles	Button Square
NKK Switches YB26KKG01-5F24-JF	28 V	Voltage Reduction Lighting	On-On	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Snap-In	No Marking	Green LED	Clear	24 V	16 mm	DPDT	50 °C	-25 °C	Illuminated Standard	100000 Cycles	28 V	0.4 VA	200000 Cycles	Button Square
NKK Switches YB26KKG01	28 V	Voltage Reduction Lighting	On-On	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Snap-In	No Marking				16 mm	DPDT	70 °C	-25 °C	Standard	100000 Cycles	28 V	0.4 VA	200000 Cycles	Plunger for Cap
NKK Switches YB26KKW03-5C05-JB	30 V	Voltage Reduction Lighting	On-On		PC Pin		Panel Mount Snap-In	No Marking	LED Red	Clear	5 VDC	16 mm	DPDT	50 °C	-25 °C	Illuminated Standard	100000 Cycles	125 V	3 A	200000 Cycles	Button Square
NKK Switches YB26KKW01-5C-JC	30 V	Voltage Reduction Lighting	On-On	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Snap-In	No Marking	LED Red	Clear (Red Filter/Diffuser)	1.9 VDC	16 mm	DPDT	50 °C	-25 °C	Illuminated Standard	100000 Cycles	125 V	3 A	200000 Cycles	Button Square
NKK Switches YB26KKW01/CUL	30 V	Voltage Reduction Lighting	On-On	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Snap-In	No Marking				16 mm	DPDT	70 °C	-25 °C	Standard	100000 Cycles	125 V	3 A	200000 Cycles	Plunger for Cap
NKK Switches YB26KKG01-6B-JB	28 V	Voltage Reduction Lighting	On-On	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Snap-In	No Marking	LED White	Clear	3.3 VDC	16 mm	DPDT	50 °C	-25 °C	Illuminated Standard	100000 Cycles	28 V	0.4 VA	200000 Cycles	Button Square

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.02
		10	$ 24.54
		25	$ 23.44
		50	$ 22.20
		100	$ 21.37
		250	$ 19.99
		500	$ 17.06
Newark	Each	1	$ 47.34
		5	$ 42.21
		10	$ 40.78
		25	$ 38.53
		50	$ 35.86
		100	$ 31.76
		250	$ 28.49

Description

General part information

YB26KK Series

Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Snap-In
