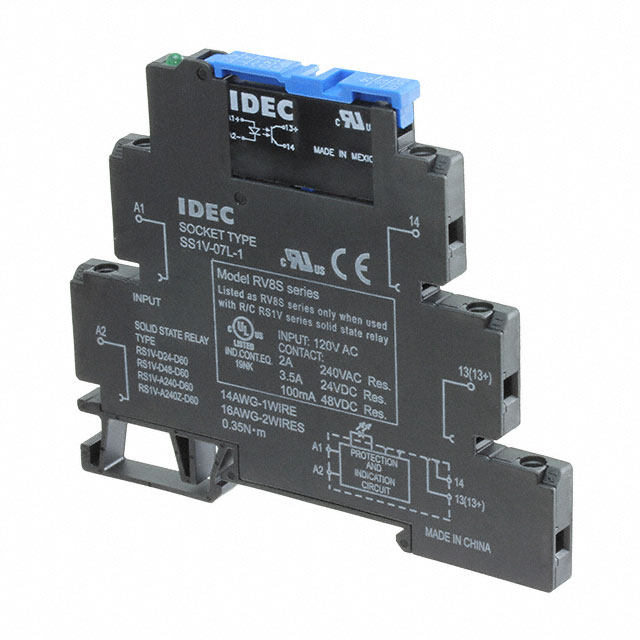

RV8S-S-A240Z-A120

Active

IDEC

SOLID STATE RELAY, SPST-NO, 2 A, 280 VAC, PANEL MOUNT, SPRING, ZERO CROSSING

Search across all available documentation for this part.

Active

IDEC

SOLID STATE RELAY, SPST-NO, 2 A, 280 VAC, PANEL MOUNT, SPRING, ZERO CROSSING

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Voltage - Load [Min]	Voltage - Load [Max]	Load Current	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Approval Agency	Output Type	Voltage - Input [Max]	Voltage - Input [Min]	Termination Style
IDEC RV8S-S-A240Z-A240	Module	24 V	280 V	2 A	-20 C	60 °C	DIN Rail	CE cULus	AC Zero Cross	264 VAC	192 VAC	Spring Terminal
IDEC RV8S-S-A240-D6	Module	24 V	280 V	2 A	-20 C	60 °C	DIN Rail	CE cULus	AC	12 V	4.5 V	Spring Terminal
IDEC RV8S-S-A240Z-D6	Module	24 V	280 V	2 A	-20 C	60 °C	DIN Rail	CE cULus	AC Zero Cross	12 V	4.5 V	Spring Terminal
IDEC RV8S-S-D24-A120	Module	0 V	24 V	3.5 A	-20 C	60 °C	DIN Rail	CE cULus	DC	132 VAC	96 VAC	Spring Terminal
IDEC RV8S-S-D48-A120	Module	0 V	48 V	100 mA	-20 C	60 °C	DIN Rail	CE cULus	DC	132 VAC	96 VAC	Spring Terminal
IDEC RV8S-S-A240Z-A120	Module	24 V	280 V	2 A	-20 C	60 °C	DIN Rail	CE cULus	AC Zero Cross	132 VAC	96 VAC	Spring Terminal
IDEC RV8S-S-A240-A120	Module	24 V	280 V	2 A	-20 C	60 °C	DIN Rail	CE cULus	AC	132 VAC	96 VAC	Spring Terminal
IDEC RV8S-S-A240Z-D24	Module	24 V	280 V	2 A	-20 C	60 °C	DIN Rail	CE cULus	AC Zero Cross	30 V	19.6 VDC	Spring Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) Module
