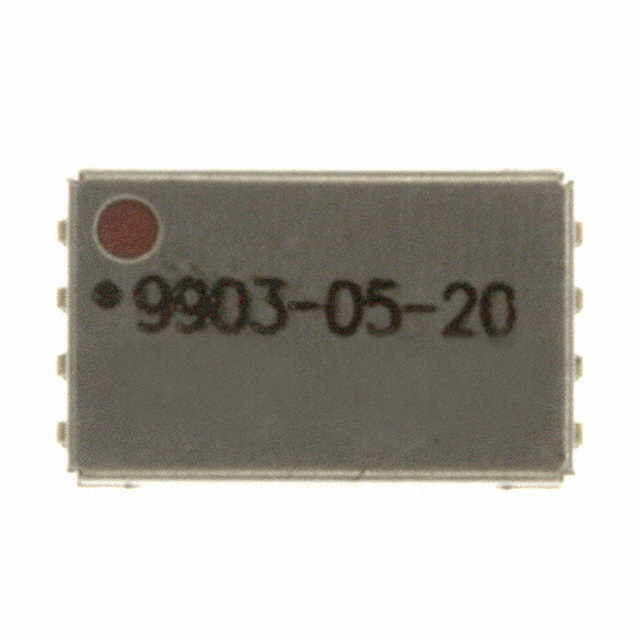

9903-05-20
Coto Technology
RELAY RF SPST-NO 250MA 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
9903-05-20
Coto Technology
RELAY RF SPST-NO 250MA 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9903-05-20 |
|---|---|
| Coil Current | 33.3 mA |
| Coil Resistance | 150 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 250 mA |
| Features | Magnetic Shield |
| Mounting Type | Surface Mount |
| Must Operate Voltage | 3.8 VDC |
| Must Release Voltage | 0.4 VDC |
| Operate Time | 0.25 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Release Time | 0.05 ms |
| Switching Voltage | 100 VAC, 100 VDC |
| Termination Style | J Lead |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 17.16 | |
| 10 | $ 15.25 | |||
| 25 | $ 14.49 | |||
| 50 | $ 13.73 | |||
| 100 | $ 12.96 | |||
| 300 | $ 11.82 | |||
| 500 | $ 11.06 | |||
Description
General part information
9903 Series
RELAY RF SPST-NO 250MA 5V
