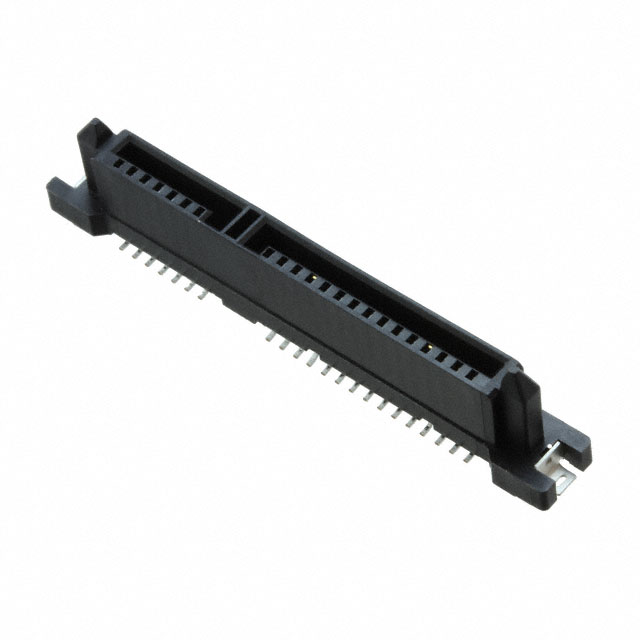

10029065-001CLF
ActiveAmphenol ICC (FCI)
CONN SATA RCPT 22POS SLD SMD
Deep-Dive with AI
Search across all available documentation for this part.
10029065-001CLF
ActiveAmphenol ICC (FCI)
CONN SATA RCPT 22POS SLD SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10029065-001CLF |
|---|---|
| Connector Style | Receptacle |
| Connector Type | SATA |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Board Guide |
| Mounting Type | Surface Mount |
| Number of Positions | 22 positions |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.37 | |
| 10 | $ 4.92 | |||
| 25 | $ 3.85 | |||
| 40 | $ 3.69 | |||
| 80 | $ 3.55 | |||
Description
General part information
10029065 Series
22 Position SATA Receptacle Connector Solder Surface Mount
