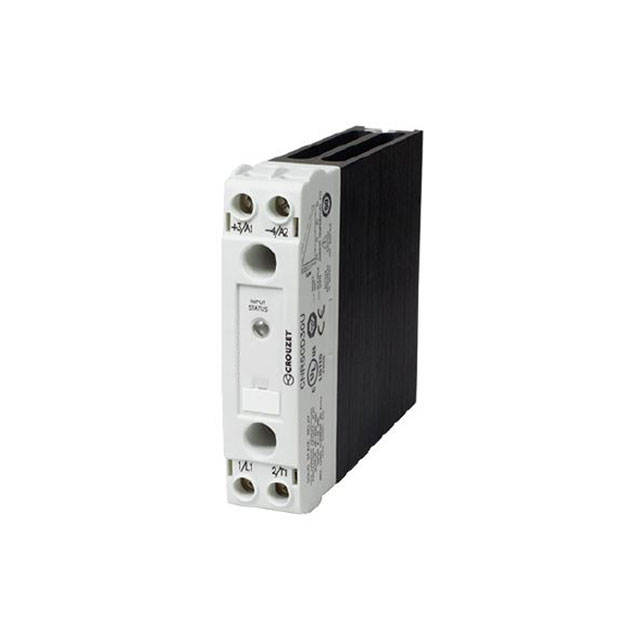

CNR60D30UR

Obsolete

Sensata-Crydom

SSR RELAY SPST-NO 30A 48-600V

Search across all available documentation for this part.

Obsolete

Sensata-Crydom

SSR RELAY SPST-NO 30A 48-600V

Technical Specifications

Parameters and characteristics for this part

Specification	CNR60D30UR

Load Current	30 A
Mounting Type	DIN Rail
Output Type	AC
Package / Case	SSR with Integrated Heat Sink
Termination Style	Screw Terminal
Voltage - Input [Max]	32 V
Voltage - Input [Min]	4 V
Voltage - Load [Max]	600 V
Voltage - Load [Min]	48 V

Part	Voltage - Input [Max]	Voltage - Input [Min]	Output Type	Voltage - Load [Min]	Voltage - Load [Max]	Termination Style	Load Current	Mounting Type	Package / Case
Sensata-Crydom CNR60D30UR	32 V	4 V	AC	48 V	600 V	Screw Terminal	30 A	DIN Rail	SSR with Integrated Heat Sink

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Solid State SPST-NO (1 Form A) SSR with Integrated Heat Sink
