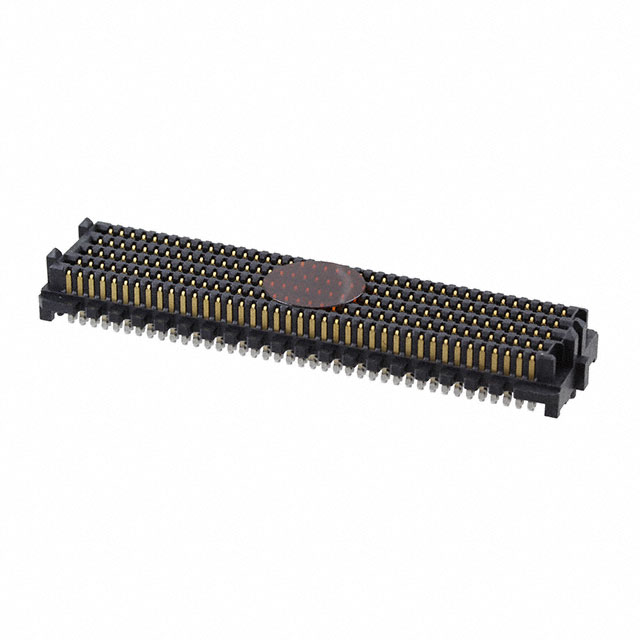

ASP-134487-01
ActiveSamtec Inc.
CONN HD ARRAY PLUG 400P SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ASP-134487-01
ActiveSamtec Inc.
CONN HD ARRAY PLUG 400P SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASP-134487-01 |
|---|---|
| Connector Type | High Density Array, Male |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | VITA 57 |
| Height Above Board [z] | 6.22 mm |
| Height Above Board [z] | 0.245 in |
| Mounting Type | Surface Mount |
| Number of Positions | 400 |
| Number of Rows | 10 |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 36.17 | |
| 10 | $ 33.84 | |||
| 25 | $ 31.13 | |||
| 50 | $ 25.72 | |||
| 100 | $ 22.66 | |||
| 250 | $ 20.68 | |||
Description
General part information
134487-01 Series
400 Position Connector High Density Array, Male Surface Mount Gold
