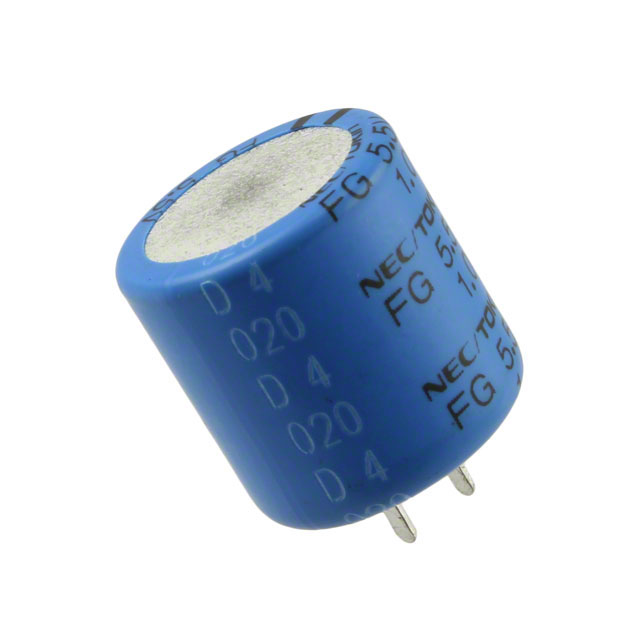

FGR0H105ZF

Active

KEMET

CAP, 1F, 5.5V, SUPER, RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP, 1F, 5.5V, SUPER, RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	FGR0H105ZF

Capacitance	1 F
ESR (Equivalent Series Resistance)	65 Ohm
Height - Seated (Max) [Max]	19 mm
Height - Seated (Max) [Max]	0.748 in
Lead Spacing	5.08 mm
Lead Spacing	0.2 in
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Termination	PC Pins
Tolerance [Max]	80 %
Tolerance [Min]	-20 %
Voltage - Rated	5.5 V

Part	Mounting Type	Lead Spacing	Lead Spacing	Capacitance	ESR (Equivalent Series Resistance)	Package / Case	Termination	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance [Max]	Tolerance [Min]
KEMET FGR0H105ZF	Through Hole	5.08 mm	0.2 in	1 F	65 Ohm	Radial Can	PC Pins	5.5 V	19 mm	0.748 in	85 °C	-40 °C	80 %	-20 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 F (EDLC) Supercapacitor 5.5 V Radial, Can 65Ohm @ 1kHz
