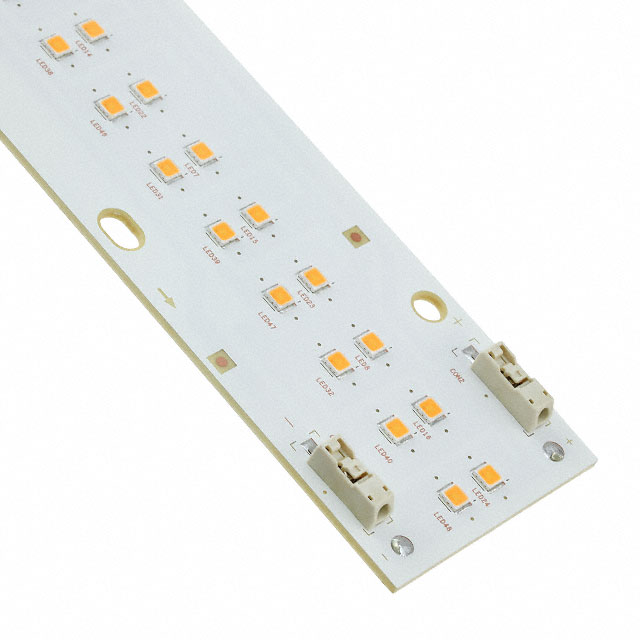

SL-B8T4N80L1WW

Obsolete

Samsung Semiconductor, Inc.

LED MOD INFLUXS04 LNR STR 4000K

Search across all available documentation for this part.

Obsolete

Samsung Semiconductor, Inc.

LED MOD INFLUXS04 LNR STR 4000K

Technical Specifications

Parameters and characteristics for this part

Specification	SL-B8T4N80L1WW

CCT (K)	4000 K
Color	Neutral, White
Configuration	Linear Light Strip
CRI (Color Rendering Index)	80
Current - Max [Max]	1.38 A
Current - Test	1.38 A
Features	With Connector
Height [z]	5.9 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	137 lm/W
Luminous Flux @ Current/Temperature	4550 lm
Size / Dimension [x]	279.6 mm
Size / Dimension [y]	39.6 mm
Temperature - Test	65 °C
Type	LED Module
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	24.1 V

Part	Type	Current - Test	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	Size / Dimension [x]	Size / Dimension [y]	CCT (K)	Lens Type	CRI (Color Rendering Index)	Height [z]	Color	Viewing Angle	Configuration	Current - Max [Max]	Temperature - Test	Features	Voltage - Forward (Vf) (Typ)
Samsung Semiconductor, Inc. SL-B8T4N90L1WW	LED Module	950 mA	140 lm/W	6060 lm	560 mm	24 mm	4000 K	Flat	80	5.9 mm	Neutral White	120 °	Linear Light Strip	950 mA
Samsung Semiconductor, Inc. SL-B8T4N80L1WW	LED Module	1.38 A	137 lm/W	4550 lm	279.6 mm	39.6 mm	4000 K	Flat	80	5.9 mm	Neutral White	115 °	Linear Light Strip	1.38 A	65 °C	With Connector	24.1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module inFlux_S04 White, Neutral Linear Light Strip
