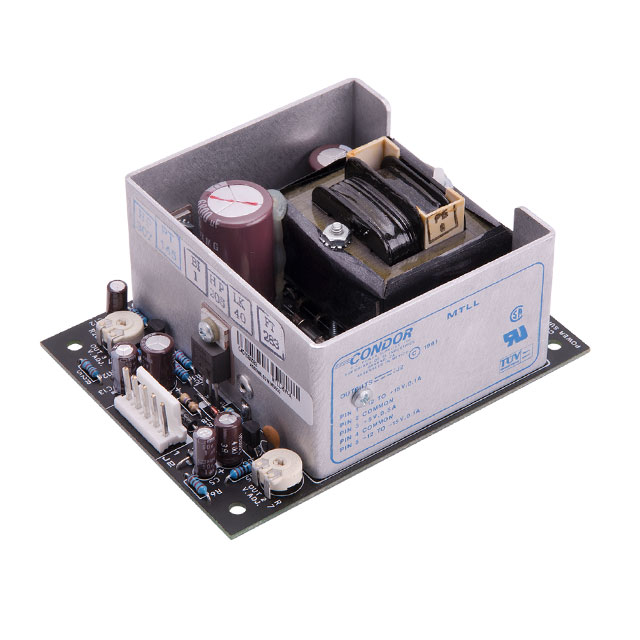

MTLL-5W-A

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 5V +/-12V 5W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 5V +/-12V 5W

Technical Specifications

Parameters and characteristics for this part

Specification	MTLL-5W-A

Applications	Medical
Approval Agency	cURus, CE, TUV
Current - Output 1	500 mA
Current - Output 2	100 mA
Current - Output 3	100 mA
Features	Remote Sense, Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	5 W
Size / Dimension [x]	108 mm
Size / Dimension [x]	4.25 "
Size / Dimension [y]	82.6 mm
Size / Dimension [y]	82.55 mm
Size / Dimension [z]	43.2 mm
Size / Dimension [z]	1.7 "
Type	Linear
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output 1	5 V
Voltage - Output 2	12 V
Voltage - Output 3	-12 V

Part	Approval Agency	Voltage - Output 1	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Applications	Voltage - Output 2	Current - Output 3	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Type	Current - Output 2	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 3	Current - Output 1	Number of Outputs
SL POWER / Advanced Energy MTLL-5W-A	CE cURus TUV	5 V	Adjustable Output Remote Sense Universal Input	43.2 mm	82.6 mm	108 mm	82.55 mm	1.7 "	4.25 "	5 W	Medical	12 V	100 mA	Chassis Mount	240 VAC	100 VAC	Linear	100 mA	70 °C	0 °C	-12 V	500 mA	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear AC DC Converters 3 Output 5V 12V -12V 100 ~ 240 VAC Input
