0259-0-00-01-00-00-03-0

Active

Mill-Max Manufacturing Corp.

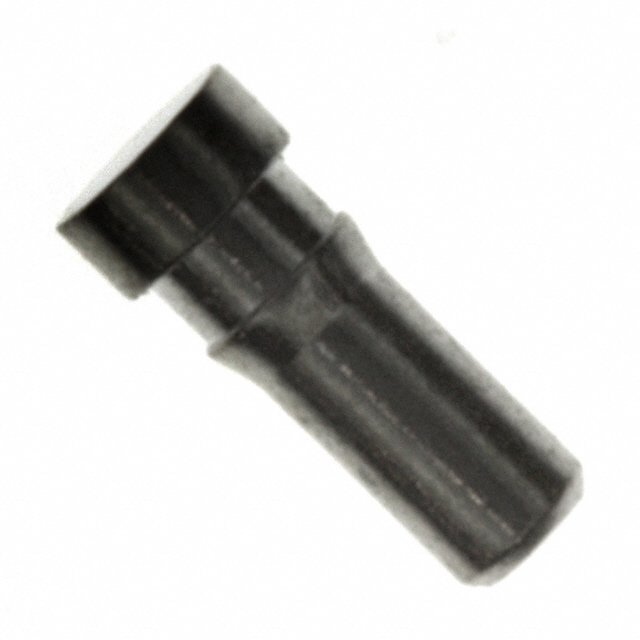

CONN PC PIN CIRC .053DIA TINLEAD

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PC PIN CIRC .053DIA TINLEAD

Technical Specifications

Parameters and characteristics for this part

Specification	0259-0-00-01-00-00-03-0

Contact Finish	Tin-Lead
Contact Finish Thickness	200 Áin
Contact Finish Thickness	5.08 Ám
Contact Material	Brass Alloy
Flange Diameter [diameter]	1.83 mm
Flange Diameter [diameter]	0.072 in
Insulation	Non-Insulated
Length - Above Flange [x]	0.142 in
Length - Above Flange [x]	3.61 mm
Length - Overall [x]	0.173 in
Length - Overall [x]	4.39 mm
Mounting Hole Diameter [diameter]	1.5 mm
Mounting Hole Diameter [diameter]	0.059 in
Mounting Type	Through Hole
Pin Size - Above Flange [diameter]	1.35 mm
Pin Size - Above Flange [diameter]	0.053 in
Terminal Style	Single End
Terminal Type	PC Pin
Termination	Press-Fit

Part	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Insulation	Length - Above Flange [x]	Length - Above Flange [x]	Contact Material	Terminal Style	Mounting Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Length - Overall [x]	Length - Overall [x]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Terminal Type	Termination
Mill-Max Manufacturing Corp. 0259-0-00-21-00-00-03-0	1.35 mm	0.053 in	Non-Insulated	0.142 in	3.61 mm	Brass Alloy	Single End	Through Hole	1.5 mm	0.059 in	0.51 µm	20 µin	0.173 in	4.39 mm	1.83 mm	0.072 in	Gold	PC Pin	Press-Fit
Mill-Max Manufacturing Corp. 0259-0-00-01-00-00-03-0	1.35 mm	0.053 in	Non-Insulated	0.142 in	3.61 mm	Brass Alloy	Single End	Through Hole	1.5 mm	0.059 in	5.08 Ám	200 Áin	0.173 in	4.39 mm	1.83 mm	0.072 in	Tin-Lead	PC Pin	Press-Fit
Mill-Max Manufacturing Corp. 0259-0-00-15-00-00-03-0	1.35 mm	0.053 in	Non-Insulated	0.142 in	3.61 mm	Brass Alloy	Single End	Through Hole	1.5 mm	0.059 in	0.25 Ám	10 Áin	0.173 in	4.39 mm	1.83 mm	0.072 in	Gold	PC Pin	Press-Fit

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.40

General part information

PC Pin Terminal Connector Through Hole Tin-Lead 0.053" (1.35mm) Dia
