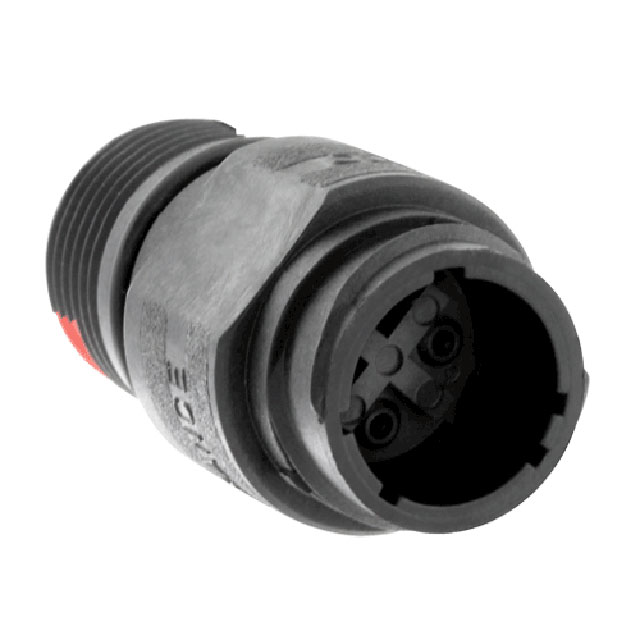

CL1C1101

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG MALE 4POS INLINE

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG MALE 4POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	CL1C1101

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp and Solder Cup
Fastening Type	Twist Latch
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Thermoplastic, Halogen Free
Shell Size - Insert	1-1
Shielding	Unshielded
Type	For Male Pins

Part	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Type	Material Flammability Rating	Housing Color	Contact Type	Fastening Type	Shielding	Shell Material	Contact Shape	Mounting Type	Orientation	Connector Type	Ingress Protection	Note	Number of Positions	Contact Size	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Shell Size - Insert
Souriau-Sunbank by Eaton CL1C1201	2	1	For Male Pins	UL94 V-0	Black	Crimp and Solder Cup	Twist Latch	Unshielded	Thermoplastic Halogen Free	Circular	Free Hanging (In-Line)	Keyed	Receptacle Housing	IP67 - Dust Tight Waterproof	Contacts Not Included	9	20	125 °C	-40 °C	Thermoplastic
Souriau-Sunbank by Eaton CL1C1100			For Male Pins	UL94 V-0	Black	Crimp and Solder Cup	Twist Latch	Unshielded	Thermoplastic Halogen Free	Circular	Free Hanging (In-Line)	Keyed	Receptacle Housing	IP40	Contacts Not Included	4	16	125 °C	-40 °C	Thermoplastic	1-1
Souriau-Sunbank by Eaton CL1C1200	2	1	For Male Pins	UL94 V-0	Black	Crimp and Solder Cup	Twist Latch	Unshielded	Thermoplastic Halogen Free	Circular	Free Hanging (In-Line)	Keyed	Receptacle Housing	IP40	Contacts Not Included	9	20	125 °C	-40 °C	Thermoplastic
Souriau-Sunbank by Eaton CL1C1101			For Male Pins	UL94 V-0	Black	Crimp and Solder Cup	Twist Latch	Unshielded	Thermoplastic Halogen Free	Circular	Free Hanging (In-Line)	Keyed	Receptacle Housing	IP67 - Dust Tight Waterproof	Contacts Not Included	4	16	125 °C	-40 °C	Thermoplastic	1-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 11.16

General part information

4 Position Circular Connector Receptacle Housing Free Hanging (In-Line)
