FDA2-25489QBLT4F-L

Active

Qualtek

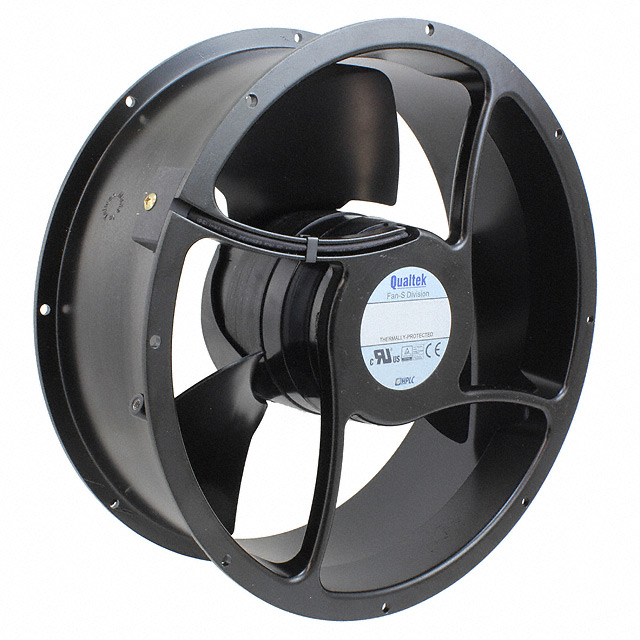

FAN AXIAL 254X89MM 230VAC TERM

Search across all available documentation for this part.

Active

Qualtek

FAN AXIAL 254X89MM 230VAC TERM

Technical Specifications

Parameters and characteristics for this part

Specification	FDA2-25489QBLT4F-L

Air Flow	12.32 m³/min
Air Flow	440 CFM
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	140 mA
Fan Type	Tubeaxial
Ingress Protection	IP54 - Dust Protected, Water Resistant
Lifetime @ Temp.	100000 Hrs
Material - Blade	Steel
Material - Frame	Aluminum
Noise	52 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	32 W
RPM	1650 RPM
Size / Dimension	Round
Size / Dimension [diameter]	10 in
Static Pressure	76.5 Pa
Static Pressure	0.307 in H2O
Termination	2 Terminals
Voltage - Rated	230 VAC
Weight	2.7 kg
Weight	6 lbs
Width [y]	89 mm

Part	Power (Watts)	Bearing Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	RPM	Width [y]	Termination	Air Flow	Air Flow	Material - Blade	Lifetime @ Temp.	Noise	Fan Type	Current Rating (Amps)	Size / Dimension [diameter]	Size / Dimension	Ingress Protection	Static Pressure	Static Pressure	Material - Frame	Voltage - Rated	Weight	Weight
Qualtek FDA2-25489QBLT4F-L	32 W	Ball	-20 °C	70 °C	-20 C	70 °C	CE cURus TUV	1650 RPM	89 mm	2 Terminals	12.32 m³/min	440 CFM	Steel	100000 Hrs	52 dB	Tubeaxial	140 mA	10 in	Round	IP54 - Dust Protected Water Resistant	76.5 Pa	0.307 in H2O	Aluminum	230 VAC	2.7 kg	6 lbs
Qualtek FDA2-25489NBLW4F	29 W	Ball	-20 °C	70 °C	-20 C	70 °C	CE cURus TUV	1650 RPM	89 mm	2 Wire Leads	12.32 m³/min	440 CFM	Steel	50000 Hrs	52 dB	Tubeaxial	0.28 A	10 in	Round		76.5 Pa	0.307 in H2O	Aluminum	115 VAC	2.7 kg	6 lbs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 230VAC Round - 254mm Dia Ball 440.0 CFM (12.32m³/min) 2 Terminals
