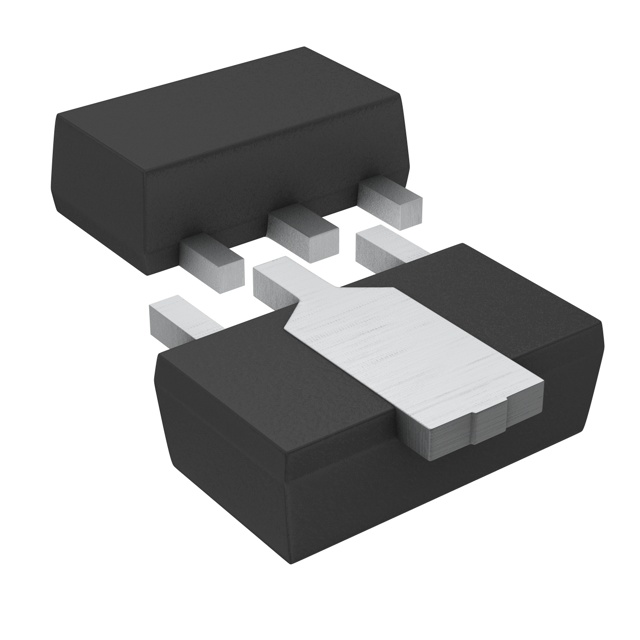

2SA1797T100Q

Rohm Semiconductor

3000MA, 50V, PNP, SI, SMALL SIGNAL TRANSISTOR, MPT3, 3 PIN

Search across all available documentation for this part.

Rohm Semiconductor

3000MA, 50V, PNP, SI, SMALL SIGNAL TRANSISTOR, MPT3, 3 PIN

Technical Specifications

Parameters and characteristics for this part

Specification	2SA1797T100Q

Current - Collector (Ic) (Max) [Max]	2 A
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	120 hFE
Frequency - Transition	200 MHz
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	TO-243AA
Power - Max [Max]	2 W
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	350 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V

Part	Transistor Type	Power - Max [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Operating Temperature	Package / Case	Vce Saturation (Max) @ Ib, Ic	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Frequency - Transition	Current - Collector Cutoff (Max) [Max]	Current - Collector (Ic) (Max) [Max]
Rohm Semiconductor 2SA1797T100Q	PNP	2 W	120 hFE	150 °C	TO-243AA	350 mV	50 V	Surface Mount	200 MHz	100 nA	2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor PNP 50 V 2 A 200MHz 2 W Surface Mount MPT3
