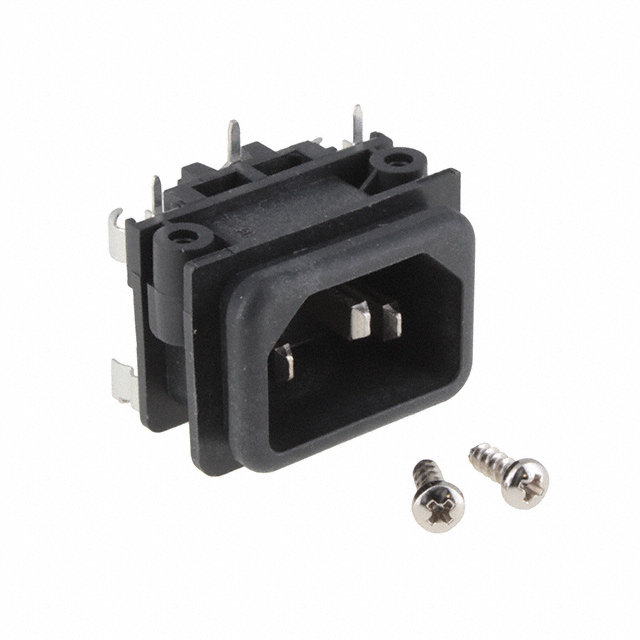

GSF1.2002.51

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	GSF1.2002.51

Accomodates a Fuse	True
Approval Agency	CCC, UL, CSA, ENEC
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Features	Mounting Hardware
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle
Panel Thickness [x]	2.5 mm
Panel Thickness [x]	0.098 in
Termination	Solder
Voltage Rating - Appliance Inlet	250 VAC

Part	Connector Type	Panel Thickness [custom]	Panel Thickness [custom]	Filter Type	Fuse Holder, Drawer	Voltage Rating - Appliance Inlet	Current Rating - Appliance Inlet	Approval Agency	Material Flammability Rating	Features	Termination	Ingress Protection	Mounting Type	Connector Style	Panel Thickness	Panel Thickness	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Thickness [x]	Panel Thickness [x]
SCHURTER Inc. GSF1.2002.31	Receptacle Male Blades - Module	0.059 in	1.5 mm	Unfiltered - Commercial	Fuse Holder	250 VAC	10 A	CCC CSA ENEC UL	UL94 V-0	Mounting Hardware	Solder	IP40	Panel Mount Flange Through Hole Right Angle	IEC 320-C14
SCHURTER Inc. GSF1.2002.01	Receptacle Male Blades - Module			Unfiltered - Commercial	Fuse Holder	250 VAC	10 A	CCC CSA ENEC UL	UL94 V-0	Mounting Hardware	Solder	IP40	Panel Mount Flange Through Hole Right Angle	IEC 320-C14	0.236 in	6 mm	30.3 mm	22.3 mm
SCHURTER Inc. GSF1.2002.41	Receptacle Male Blades - Module			Unfiltered - Commercial	Fuse Holder	250 VAC	10 A	CCC CSA ENEC UL	UL94 V-0	Mounting Hardware	Solder	IP40	Panel Mount Flange Through Hole Right Angle	IEC 320-C14	0.079 in	2 mm
SCHURTER Inc. GSF1.2002.71	Receptacle Male Blades - Module			Unfiltered - Commercial		250 VAC	10 A	CCC CSA ENEC UL	UL94 V-0			IP40		IEC 320-C14
SCHURTER Inc. GSF1.2002.51	Receptacle Male Blades - Module			Unfiltered - Commercial	Fuse Holder	250 VAC	10 A	CCC CSA ENEC UL	UL94 V-0	Mounting Hardware	Solder	IP40	Panel Mount Flange Through Hole Right Angle	IEC 320-C14					2.5 mm	0.098 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
