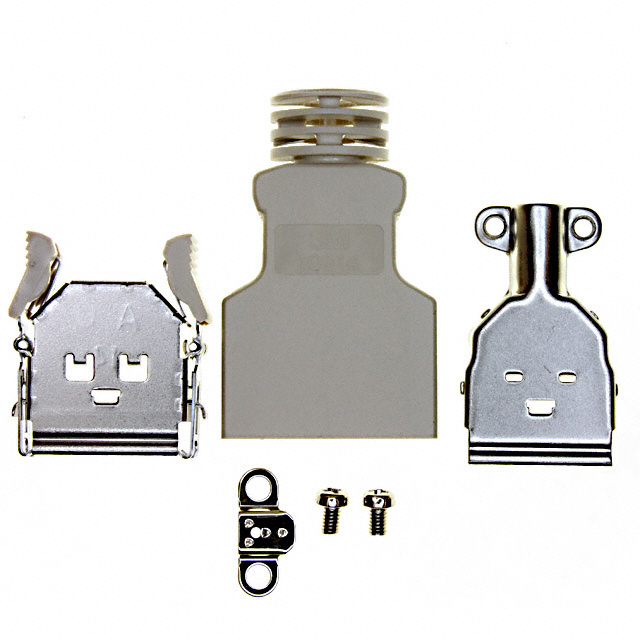

10314-3210-000 - 10314-3210-000

10314-3210-000

Active
3M (TC)

CONNECTOR BACKSHELL, PLASTIC SHIELDED JUNCTION BACKSHELL, MDR 14 POSITION CONNECTOR, 14, 180°

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN3D Product Image EN+3
10314-3210-000 - 10314-3210-000

10314-3210-000

Active
3M (TC)

CONNECTOR BACKSHELL, PLASTIC SHIELDED JUNCTION BACKSHELL, MDR 14 POSITION CONNECTOR, 14, 180°

Deep-Dive with AI

DocumentsTechnical Data Sheet EN3D Product Image EN+3

Technical Specifications

Parameters and characteristics for this part

Specification10314-3210-000
Accessory TypeTwo Piece Backshell and Cover
Cable Exit180 °
Cable TypeRound
ColorBeige
FeaturesLatch Lock
Material [custom]Plastic, Steel
Material [custom]Metal
Number of Positions14
Primary MaterialMetal
ShieldingShielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 8.77
10$ 6.73
25$ 6.07
40$ 5.77
80$ 5.35
230$ 4.80
440$ 4.49
945$ 4.17
2400$ 3.86
NewarkEach 1$ 7.58
10$ 7.27
25$ 6.71
50$ 6.34
100$ 6.06
250$ 5.34
500$ 5.18
1000$ 4.40

Description

General part information

10314 Series

The 10314-3210-000 is a 14-way 0.050-inch plastic shielded Junction Shell for round cable. This 103 series durable one piece plastic over two piece metal junction backshell can be used with mini D Ribbon 101XX-6000 EC plug connectors. Outer shell made of ABS, inner shell made of steel (0.5mm thick) with nickel-plated finish.
