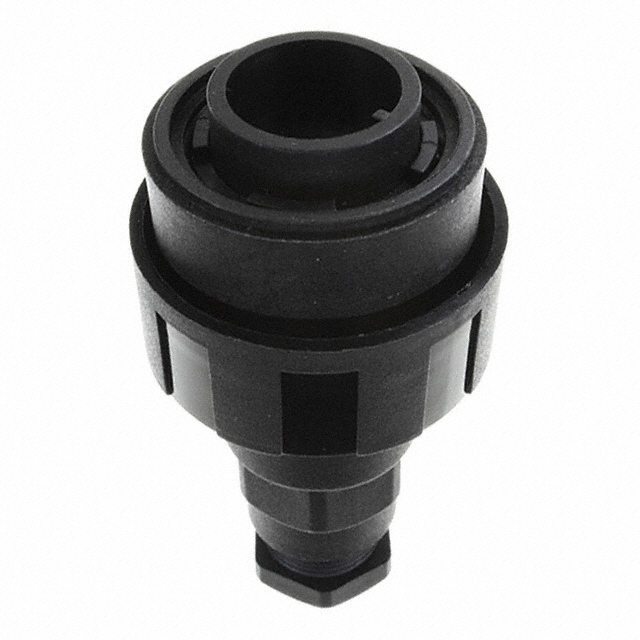

PX0794/P
ActiveBULGIN LIMITED
CONN CIRCULAR PIN 12 POS CRIMP/SOLDER ST CABLE MOUNT 12 TERMINAL 1 PORT BUCCANEER BULK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PX0794/P
ActiveBULGIN LIMITED
CONN CIRCULAR PIN 12 POS CRIMP/SOLDER ST CABLE MOUNT 12 TERMINAL 1 PORT BUCCANEER BULK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PX0794/P |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Type | Crimp and Solder Cup |
| Features | Coupling Nut, Backshell |
| Housing Color | Black |
| Includes | 1 Nut, 1 Gland, 1 Cage Clamp, 1 Backshell, 1 Connector, 1 Locking Ring |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | Keyed |
| Shell Material | Nylon, Glass Filled, Polyamide (PA) |
| Shielding | Unshielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.40 | |
| 10 | $ 19.62 | |||
| 25 | $ 18.77 | |||
| 50 | $ 18.16 | |||
| 100 | $ 17.56 | |||
| 250 | $ 16.59 | |||
| 500 | $ 16.11 | |||
Description
General part information
PX0794 Series
12 (Power) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
