MP86883GQKT-Z

NRND

MONOLITHIC POWER SYSTEMS (MPS)

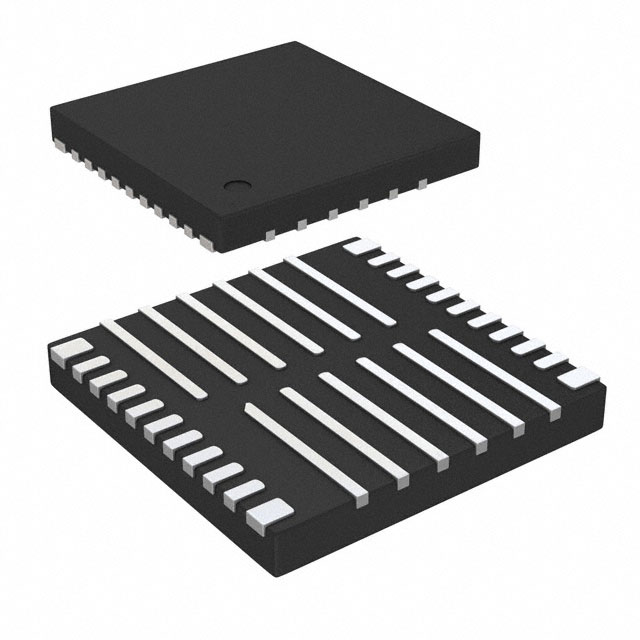

IC HALF BRIDGE DRIVER 55A 34TQFN

Search across all available documentation for this part.

NRND

MONOLITHIC POWER SYSTEMS (MPS)

IC HALF BRIDGE DRIVER 55A 34TQFN

Technical Specifications

Parameters and characteristics for this part

Specification	MP86883GQKT-Z

Applications	General Purpose
Current - Output / Channel	55 A
Fault Protection	Over Temperature, Current Limiting
Features	Bootstrap Circuit, Status Flag
Interface	Logic
Load Type	Inductive
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	34-PowerWFQFN
Supplier Device Package	34-TQFN (6x6)
Technology	Power MOSFET
Voltage - Load [Max]	14 V
Voltage - Load [Min]	4.5 V
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Features	Technology	Voltage - Load [Max]	Voltage - Load [Min]	Mounting Type	Supplier Device Package	Interface	Applications	Current - Output / Channel	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Load Type	Fault Protection
MONOLITHIC POWER SYSTEMS (MPS) MP86883GQKT-Z	Bootstrap Circuit Status Flag	Power MOSFET	14 V	4.5 V	Surface Mount	34-TQFN (6x6)	Logic	General Purpose	55 A	34-PowerWFQFN	4.5 V	5.5 V	-40 °C	125 ¯C	Inductive	Current Limiting Over Temperature
MONOLITHIC POWER SYSTEMS (MPS) MP86883GQKT-P	Bootstrap Circuit Status Flag	Power MOSFET	14 V	4.5 V	Surface Mount	34-TQFN (6x6)	Logic	General Purpose	55 A	34-PowerWFQFN	4.5 V	5.5 V	-40 °C	125 ¯C	Inductive	Current Limiting Over Temperature

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 3.17

General part information

Half Bridge Driver General Purpose Power MOSFET 34-TQFN (6x6)
