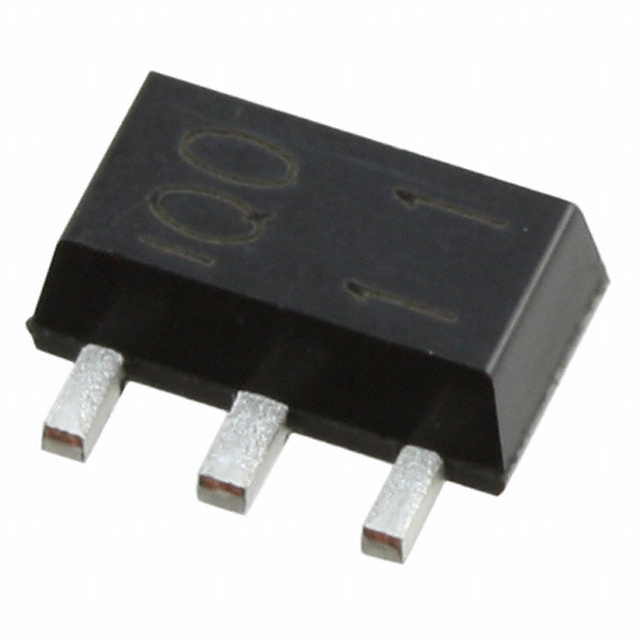

SPX431LM1-L
UnknownMaxLinear, Inc.
IC VREF SHUNT ADJ 1% SOT89-3
Deep-Dive with AI
Search across all available documentation for this part.
SPX431LM1-L
UnknownMaxLinear, Inc.
IC VREF SHUNT ADJ 1% SOT89-3
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SPX431LM1-L |
|---|---|
| Current - Cathode [custom] | 1 mA |
| Current - Output | 100 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 °C |
| Operating Temperature [Min] | 0 °C |
| Output Type | Adjustable |
| Package / Case | TO-243AA |
| Reference Type | Shunt |
| Supplier Device Package | SOT-89-3 |
| Temperature Coefficient | 30 ppm/°C |
| Tolerance | 1 % |
| Voltage - Output (Max) | 20 V |
| Voltage - Output (Min/Fixed) | 2.503 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SPX431 Series
Shunt Voltage Reference IC Adjustable 2.503V 20 VV ±1% 100 mA SOT-89-3
Documents
Technical documentation and resources
No documents available
