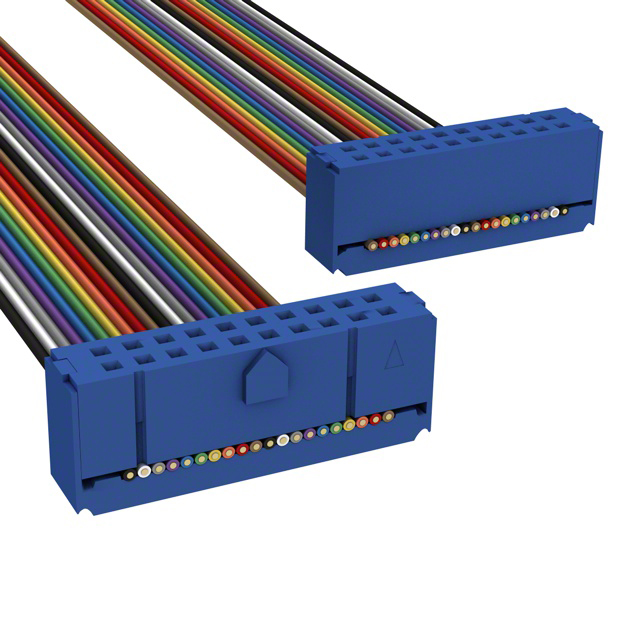

C3CCS-2036M

Active

CW Industries

IDC CABLE - CKC20S/AE20M/CKC20S

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C3CCS-2036M

Active

CW Industries

IDC CABLE - CKC20S/AE20M/CKC20S

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C3CCS-2036M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Socket
Contact Finish	Tin
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Features	Polarizing Key
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	20
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded
Usage	Board In

C3CCS-2 Series

Part	Color	Contact Finish	Number of Rows	Shielding	Features	Cable Termination	Connector Type	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Pitch - Cable	Pitch - Cable	Usage	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Length	Length	Length
CW Industries C3CCS-2018M	Multiple Ribbon	Tin	2	Unshielded	Polarizing Key	IDC	Socket to Socket	0.1 in	2.54 mm	457.2 mm	1.5 ft	0.05 "	1.27 mm	Board In	2.54 µm	100 µin	20
CW Industries C3CCS-2036G		Tin	2	Unshielded	Polarizing Key	IDC	Socket to Socket	0.1 in	2.54 mm	914.4 mm	3 ft	0.05 "	1.27 mm	Board In	2.54 µm	100 µin	20
CW Industries C3CCS-2006G		Tin	2	Unshielded	Polarizing Key	IDC	Socket to Socket	0.1 in	2.54 mm			0.05 "	1.27 mm	Board In	2.54 µm	100 µin	20	152.4 mm	6 "	0.5 '
CW Industries C3CCS-2606M	Multiple Ribbon	Tin	2	Unshielded	Polarizing Key	IDC	Socket to Socket	0.1 in	2.54 mm			0.05 "	1.27 mm	Board In	2.54 µm	100 µin	26	152.4 mm	6 "	0.5 '
CW Industries C3CCS-2618M	Multiple Ribbon	Tin	2	Unshielded	Polarizing Key	IDC	Socket to Socket	0.1 in	2.54 mm	457.2 mm	1.5 ft	0.05 "	1.27 mm	Board In	2.54 µm	100 µin	26
CW Industries C3CCS-2618G		Tin	2	Unshielded	Polarizing Key	IDC	Socket to Socket	0.1 in	2.54 mm	457.2 mm	1.5 ft	0.05 "	1.27 mm	Board In	2.54 µm	100 µin	26
CW Industries C3CCS-2018G		Tin	2	Unshielded	Polarizing Key	IDC	Socket to Socket	0.1 in	2.54 mm	457.2 mm	1.5 ft	0.05 "	1.27 mm	Board In	2.54 µm	100 µin	20
CW Industries C3CCS-2636G		Tin	2	Unshielded	Polarizing Key	IDC	Socket to Socket	0.1 in	2.54 mm	914.4 mm	3 ft	0.05 "	1.27 mm	Board In	2.54 µm	100 µin	26
CW Industries C3CCS-2036M	Multiple Ribbon	Tin	2	Unshielded	Polarizing Key	IDC	Socket to Socket	0.1 in	2.54 mm	914.4 mm	3 ft	0.05 "	1.27 mm	Board In	2.54 µm	100 µin	20
CW Industries C3CCS-2606G		Tin	2	Unshielded	Polarizing Key	IDC	Socket to Socket	0.1 in	2.54 mm			0.05 "	1.27 mm	Board In	2.54 µm	100 µin	26	152.4 mm	6 "	0.5 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.32
		10	$ 6.62
		25	$ 6.25
		50	$ 6.10
		100	$ 5.80
		250	$ 5.19
		500	$ 4.88
		1000	$ 4.27

Description

General part information

C3CCS-2 Series

20 Position Cable Assembly Rectangular Socket to Socket 3.00' (914.40mm)
