SBA120Q_R1_00001

NRND

Panjit International Inc.

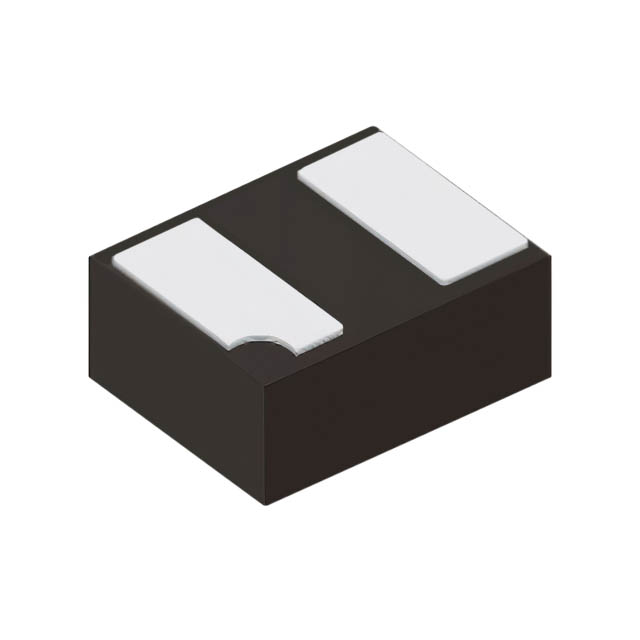

DIODE SCHOTTKY 20V 1A DFN1610-2

Search across all available documentation for this part.

NRND

Panjit International Inc.

DIODE SCHOTTKY 20V 1A DFN1610-2

Technical Specifications

Parameters and characteristics for this part

Specification	SBA120Q_R1_00001

Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	100 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	2-UDFN
Speed	200 mA, 500 ns
Supplier Device Package	DFN1610-2
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	20 V
Voltage - Forward (Vf) (Max) @ If	450 mV

Part	Supplier Device Package	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Qualification	Grade
Panjit International Inc. SBA120CH_R1_00001	SOD-323HE	1 A	450 mV	100 µA	200 mA 500 ns	150 °C	-55 °C	Schottky	SC-90 SOD-323F	20 V	Surface Mount
Panjit International Inc. SBA120CS-AU_R1_000A1	SOD-323	1 A	450 mV	100 µA	200 mA 500 ns	150 °C	-55 °C	Schottky	SC-90 SOD-323F	20 V	Surface Mount	AEC-Q101	Automotive
Panjit International Inc. SBA120CS_R1_00001	SOD-323	1 A	450 mV	100 µA	200 mA 500 ns	150 °C	-55 °C	Schottky	SC-90 SOD-323F	20 V	Surface Mount
Panjit International Inc. SBA120AS-AU_R1_000A1	SOD-123	1 A	450 mV	100 µA	200 mA 500 ns	150 °C	-55 °C	Schottky	SOD-123	20 V	Surface Mount	AEC-Q101	Automotive
Panjit International Inc. SBA120Q_R1_00001	DFN1610-2	1 A	450 mV	100 µA	200 mA 500 ns	150 °C	-55 °C	Schottky	2-UDFN	20 V	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	288000	$ 0.06

General part information

Diode 20 V 1A Surface Mount DFN1610-2

Technical documentation and resources

No documents available
