4314/17T

Active

ebm-papst Inc.

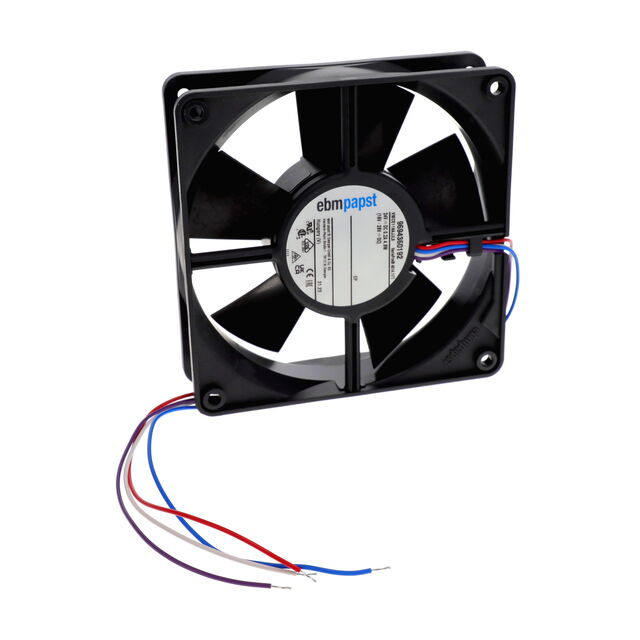

FAN AXIAL 119X32MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4314/17T

Active

ebm-papst Inc.

FAN AXIAL 119X32MM 24VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4314/17T

Air Flow	100.1 CFM
Air Flow	2.8 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.2 A
Fan Type	Tubeaxial
Lifetime @ Temp.	Varies Based on Temperature
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	45 dB(A)
Operating Temperature [Max]	65 °C
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	4.8 W
RPM	2800 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Static Pressure	70 Pa
Static Pressure	0.281 in H2O
Termination	4 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	32 VDC
Voltage Range [Min]	18 VDC
Width [y]	32 mm

4314 Series

Part	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Width [y]	Noise	Air Flow	Air Flow	Material - Frame	Material - Blade	Bearing Type	Lifetime @ Temp.	Power (Watts)	Weight	Weight	RPM	Termination	Size / Dimension [y]	Size / Dimension [x]	Features	Voltage Range [Min]	Voltage Range [Max]	Fan Type	Approval Agency	Static Pressure	Static Pressure	Current Rating (Amps)	Operating Temperature [Max]	Lifetime @ Temp.
ebm-papst Inc. 4314/2	24 VDC	-20 C	-20 °C	75 ░C	75 °C	32 mm	45 dB(A)	2.8 m³/min	100.1 CFM	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Fiberglass Reinforced Nylon Polyamide (PA)	Ball	62500 Hrs	5 W	220 g	0.485 lb	2800 RPM	3 Wire Leads	119 mm	119 mm	Speed Sensor (Tach)	12 VDC	28 VDC	Tubeaxial
ebm-papst Inc. 4314/12	24 VDC					32 mm	45 dB(A)	2.8 m³/min	100 CFM	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Fiberglass Reinforced Nylon Polyamide (PA)	Ball		5 W	226.8 g	0.5 lbs		2 Wire Leads	119 mm	119 mm		12 VDC	28 VDC	Tubeaxial	CE CSA UL VDE
ebm-papst Inc. 4314/17T	24 VDC	-20 C	-20 °C	65 °C		32 mm	45 dB(A)	2.8 m³/min	100.1 CFM	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Fiberglass Reinforced Nylon Polyamide (PA)	Ball		4.8 W			2800 RPM	4 Wire Leads	119 mm	119 mm		18 VDC	32 VDC	Tubeaxial	CE CSA UL VDE	70 Pa	0.281 in H2O	0.2 A	65 °C	Varies Based on Temperature
ebm-papst Inc. 4314-147	24 VDC	-20 C	-20 °C	75 ░C	75 °C	32 mm	45 dB(A)	2.97 mł/min	106 CFM	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Fiberglass Reinforced Nylon Polyamide (PA)	Ball	57500 Hrs	4.7 W	220 g	0.485 lb	3000 RPM	2 Wire Leads	119 mm	119 mm		12 VDC	28 VDC	Tubeaxial	CE CSA UL VDE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 76.19
		10	$ 68.93
		25	$ 64.40
		50	$ 63.49
		100	$ 58.50

Description

General part information

4314 Series

Fan Tubeaxial 24VDC Square - 119mm L x 119mm H Ball 100.1 CFM (2.80mł/min) 4 Wire Leads
