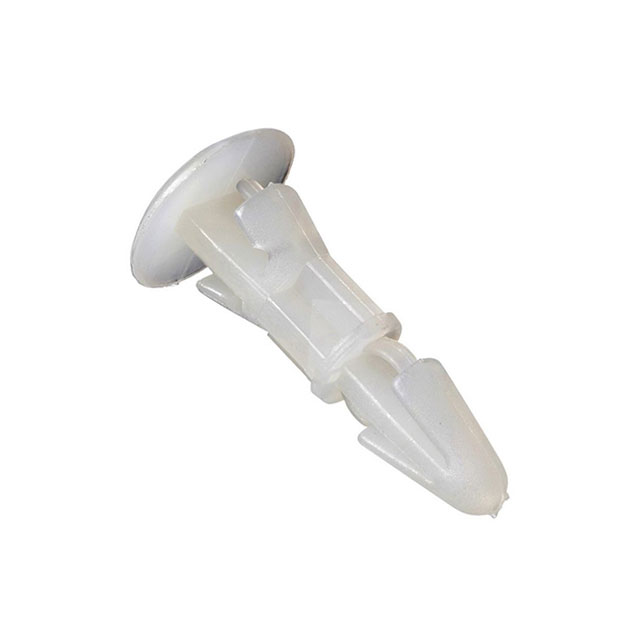

R6708-00

Active

Harwin Inc.

8.00MM SELF-LOCKING PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

8.00MM SELF-LOCKING PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	R6708-00

Between Board Height [z]	0.315 in
Between Board Height [z]	8 mm
Features	Locking, Reverse Mounting
Holding Type	Snap Lock
Length - Overall [x]	20.8 mm
Length - Overall [x]	0.819 in
Material	Nylon
Mounting Hole Diameter [diameter]	0.217 in
Mounting Hole Diameter [diameter]	5.5 mm
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.157 "
Support Hole Diameter [diameter]	3.99 mm
Support Panel Thickness [Max]	0.071 in
Support Panel Thickness [Max]	1.8 mm
Support Panel Thickness [Min]	0.02 in
Support Panel Thickness [Min]	0.5 mm

Part	Support Panel Thickness [Max]	Support Panel Thickness [Min]	Support Panel Thickness [Max]	Support Panel Thickness [Min]	Length - Overall [x]	Length - Overall [x]	Features	Holding Type	Between Board Height [z]	Between Board Height [z]	Mounting Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Material	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]
Harwin Inc. R6708-00	0.071 in	0.02 in	1.8 mm	0.5 mm	20.8 mm	0.819 in	Locking Reverse Mounting	Snap Lock	0.315 in	8 mm	Snap Lock	0.217 in	5.5 mm	Nylon	0.157 "	3.99 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Board Support Snap Lock / Snap Lock Nylon 0.315" (8.00mm)
