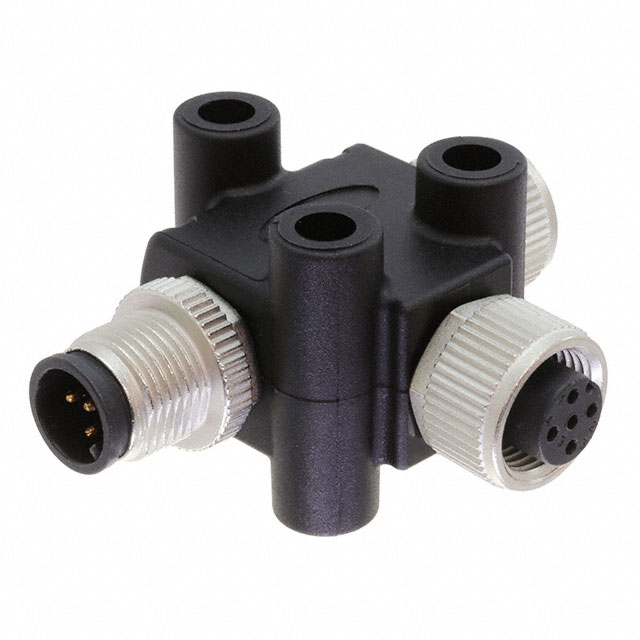

TA-A05F-A05F-A05F-01

Active

Amphenol LTW

CONN T-ADPT 5P-5/5P F-F/F INLINE

Search across all available documentation for this part.

Active

Amphenol LTW

CONN T-ADPT 5P-5/5P F-F/F INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	TA-A05F-A05F-A05F-01

Connector Style	Distributor T-Shaped
Convert From (Adapter End)	Female Sockets
Convert To (Adapter End)	Female Sockets (2)
Features	Coupling Nut
Housing Material	Thermoplastic
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions (Convert From)	5
Number of Positions (Convert To)	5
Number of Positions (Convert To)	2
Orientation (Convert From)	A
Orientation (Convert To)	A
Shell Size - Insert (Convert From)	M12
Shell Size - Insert (Convert To) [custom]	M12
Shielding	Unshielded

Part	Convert To (Adapter End)	Housing Material	Connector Style	Shielding	Orientation (Convert To)	Mounting Type	Shell Size - Insert (Convert From)	Features	Convert From (Adapter End)	Number of Positions (Convert From)	Ingress Protection	Number of Positions (Convert To)	Number of Positions (Convert To)	Orientation (Convert From)	Shell Size - Insert (Convert To) [custom]
Amphenol LTW TA-A05F-A05F-A05F-01	Female Sockets (2)	Thermoplastic	Distributor T-Shaped	Unshielded	A	Free Hanging (In-Line)	M12	Coupling Nut	Female Sockets	5	IP68 - Dust Tight Waterproof	5	2	A	M12
Amphenol LTW TA-A05F-A05M-A05M-01	Male Pins (2)	Thermoplastic	Distributor T-Shaped	Unshielded	A	Free Hanging (In-Line)	M12	Coupling Nut	Female Sockets	5	IP68 - Dust Tight Waterproof	5	2	A	M12

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Connector Distributor T-Shaped 5/5 (2) Female Sockets/Female Sockets (2) Free Hanging (In-Line)
