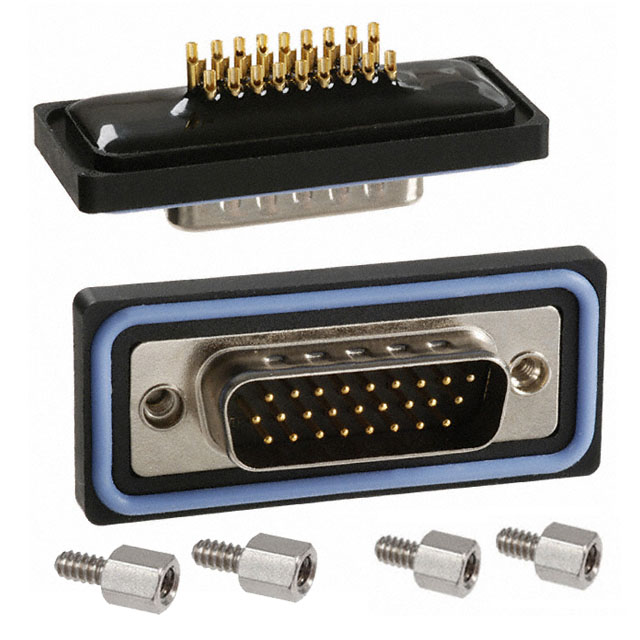

A-HDS 26 LL-WP

Active

Assmann WSW Components

CONN D-SUB HD PLUG 26POS PNL MNT

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN D-SUB HD PLUG 26POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	A-HDS 26 LL-WP

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Dielectric Material	Glass Filled, Polyamide (PA), Nylon
Features	Grounding Indents
Flange Feature	Female Screwlock, Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Number of Positions	26
Number of Rows	3
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	24 AWG

Part	Mounting Type	Contact Finish	Number of Positions	Connector Type	Contact Type	Backset Spacing	Backset Spacing	Connector Style	Shell Size, Connector Layout	Shell Size, Connector Layout	Termination	Contact Finish Thickness	Features	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Color	Current Rating (Amps)	Flange Feature	Contact Material	Number of Rows	Voltage Rating	Ingress Protection	Wire Gauge [Min]	Wire Gauge [Max]
Assmann WSW Components A-HDS 26 A-KG/T	Panel Mount Right Angle Through Hole	Gold	26	Male Pins Plug	Signal	8.89 mm	0.35 in	D-Sub High Density	2	(DA A) High Density	Solder	Flash	Board Lock Grounding Indents	UL94 V-0	105 ░C	-55 °C	Polybutylene Terephthalate (PBT) Glass Filled	Black	3 A	Female Screwlock (4-40) Mating Side	Copper Alloy	3	250 VDC
Assmann WSW Components A-HDS 26 LL-WP		Gold	26	Male Pins Plug	Signal			D-Sub High Density	2	(DA A) High Density			Grounding Indents				Glass Filled Nylon Polyamide (PA)	Black		Female Screwlock Mating Side	Copper Alloy	3		IP67 - Dust Tight Waterproof	24 AWG	28 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Position D-Sub, High Density Plug, Male Pins Connector
