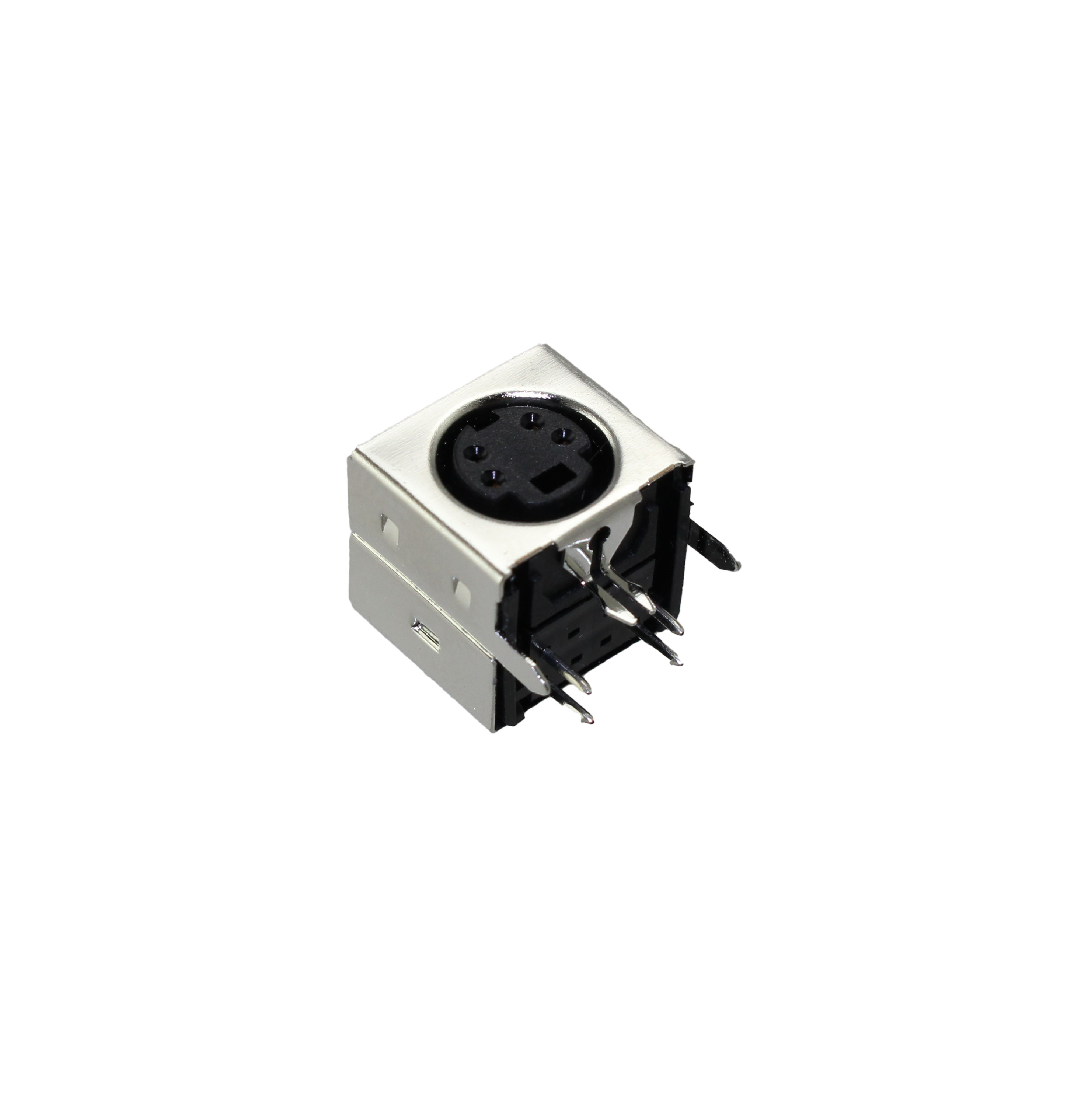

MDJ-004-FS

Active

Adam Tech

CONN JACK FMALE MINI DIN 4P SLDR

Search across all available documentation for this part.

Active

Adam Tech

CONN JACK FMALE MINI DIN 4P SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	MDJ-004-FS

Applications	Video, Audio
Color	Silver
Connector Type	Female Sockets, Jack
Contact Finish - Mating	Gold
Contact Material	Phosphor Bronze
Fastening Type	Push-Pull
Features	Board Guide, Board Lock
Insert Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Tin
Shell Material	Copper Alloy
Shell Size - Insert	Mini DIN
Shielding	Shielded
Termination	Solder
Voltage Rating	100 VAC, 12 V

Part	Mounting Type	Shell Finish	Termination	Contact Finish - Mating	Material Flammability Rating	Number of Positions	Insert Material	Connector Type	Applications	Features	Primary Material	Contact Material	Shielding	Orientation	Color	Shell Material	Shell Size - Insert	Fastening Type	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]
Adam Tech MDJ-004-FS	Through Hole Right Angle	Tin	Solder	Gold	UL94 V-0	4	Polybutylene Terephthalate (PBT) Glass Filled	Female Sockets Jack	Audio Video	Board Guide Board Lock	Metal	Phosphor Bronze	Shielded	Keyed	Silver	Copper Alloy	Mini DIN	Push-Pull	12 V 100 VAC	70 °C	-25 °C
